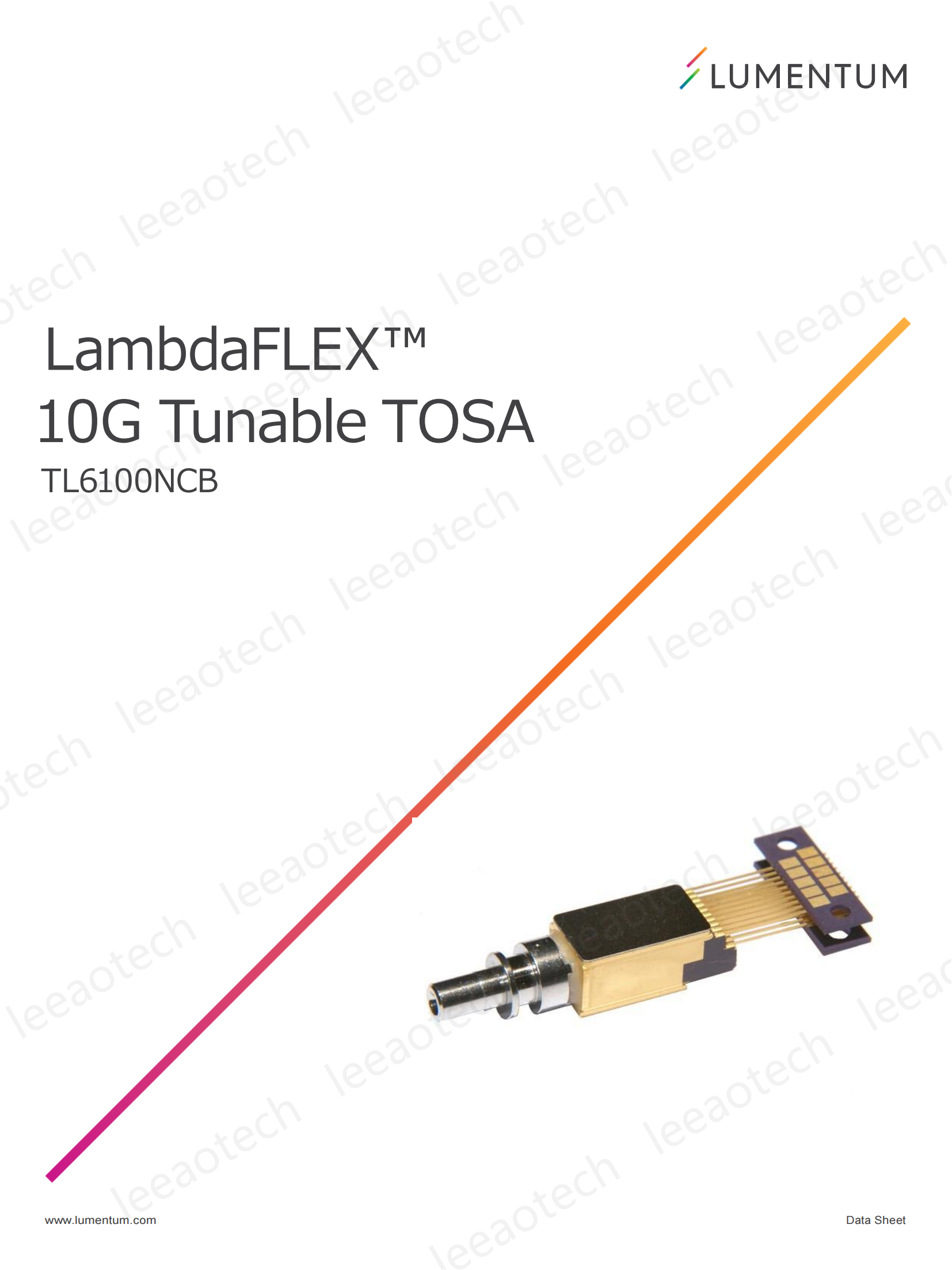

Lumentum LambdaFLEX™ 10G Tunable TOSA TL6100NCB

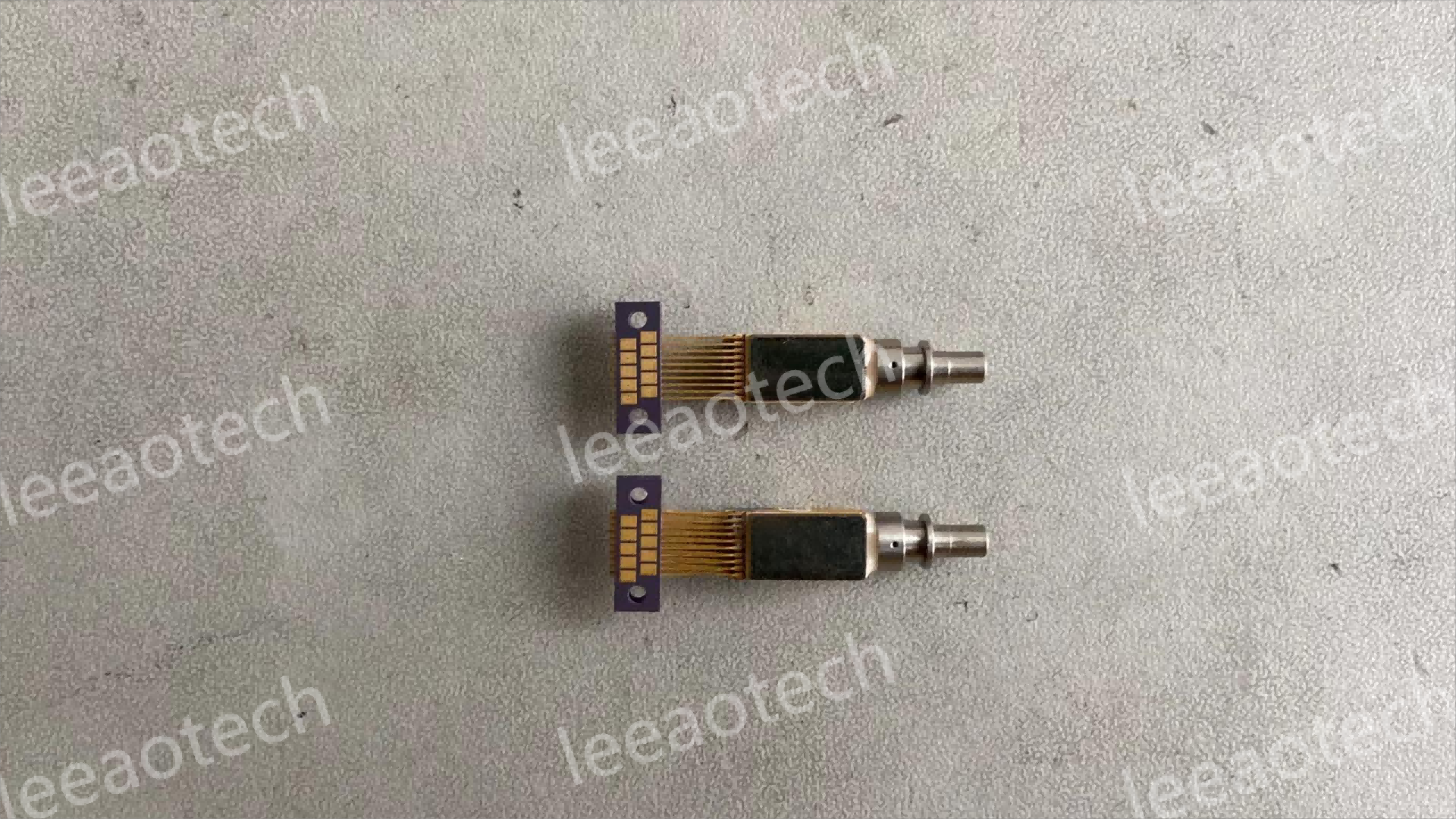

The Lumentum TL6100NCB is a high-performance tunable laser transmitter incorporating the

Lumentum DSDBR wideband tunable laser and MZ modulator. This laser + Mach Zehnder

modulator (MZ) is a fully monolithic InP chip designed for high volume, low cost manufacturing.

With no moving parts, it is a low voltage electronically tuned device enabling rapid wavelength

switching with straightforward control electronics. The integrated semiconductor optical amplifier

(SOA) provisions the optical power control and also acts as a shutter to allow dark tuning when

reverse biased.

Key Features

• Full C band on 50 GHz grid

• Ultra-small size – approx. 7 x 5 x 12 mm

• Integrated ASIC for ease of control

• Fully monolithic chip construction

• High speed electronic wavelength tuning

• High speed electronic shutter

• Ultra low power dissipation

• Narrow linewidth

• Excellent SMSR

• Wavelength stabilized for 50 GHz or 100 GHz ITU-T

channel spacing

• Operating temperature range 0°C to 75°C

• I 2C interface for wavelength control

• RoHS 6/6 compliant

Applications

• Tunable XFP transceivers

• Tunable SFP+ transceivers

• Tunable PON
