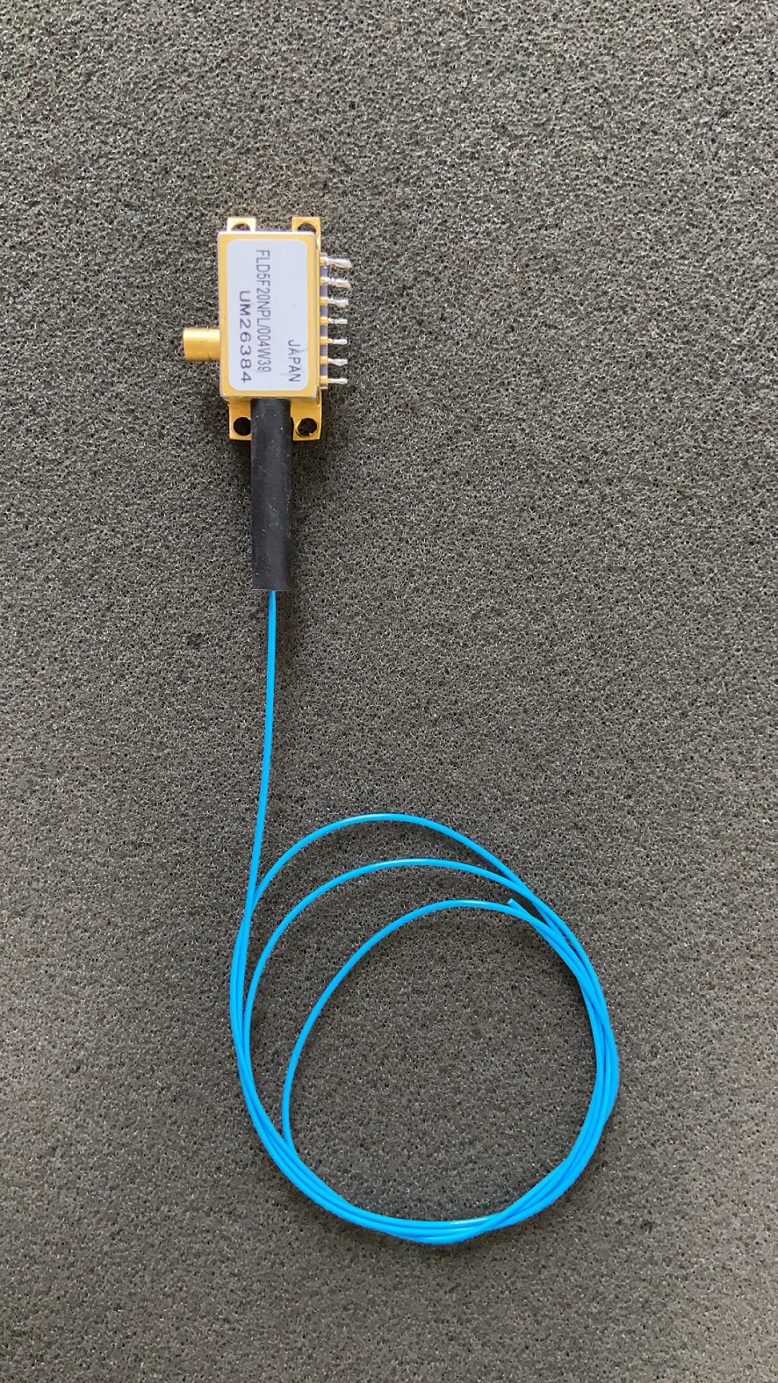

Eudyna 10Gb/s 1550nm Modulator Integrated DFB Laser 5mW FLD5F20NP

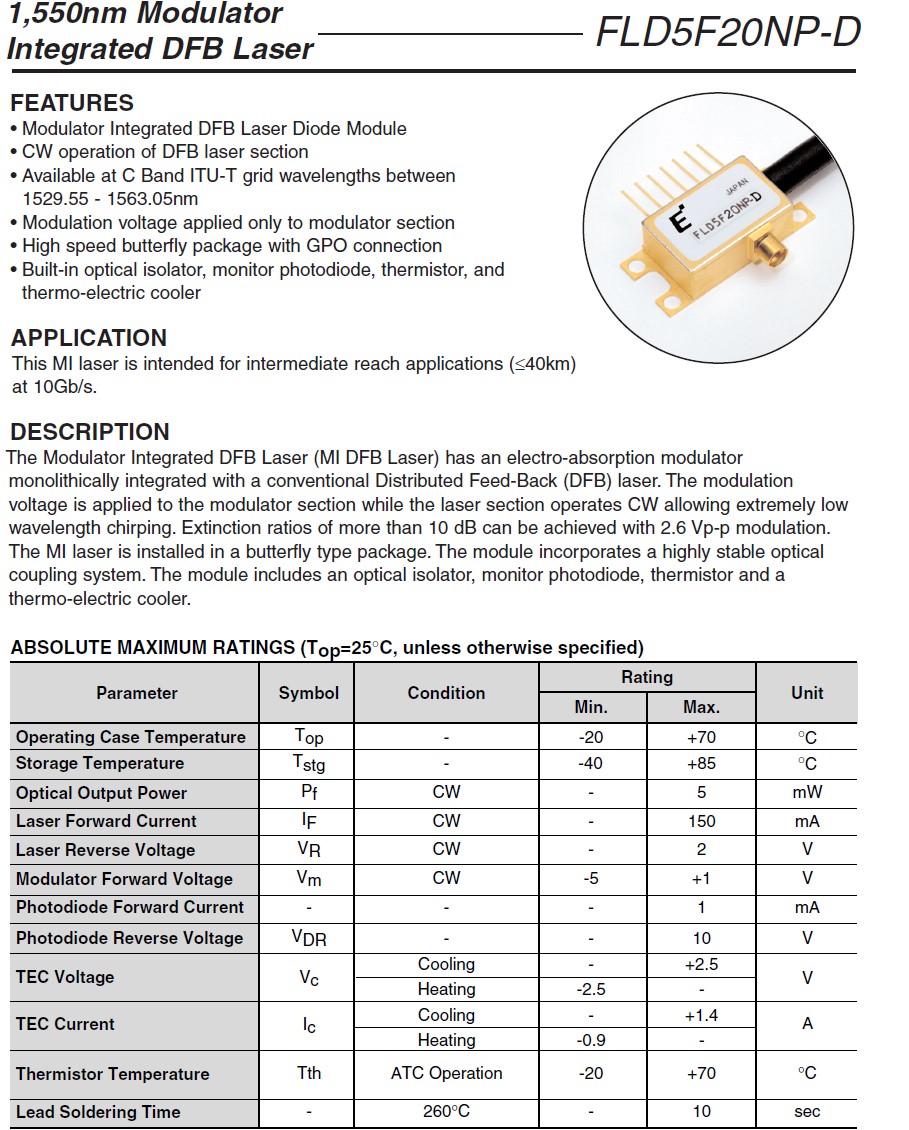

FEATURES
• Modulator Integrated DFB Laser Diode Module
• CW operation of DFB laser section
• Available at C Band ITU-T grid wavelengths between
1529.55 - 1563.05nm
• Modulation voltage applied only to modulator section

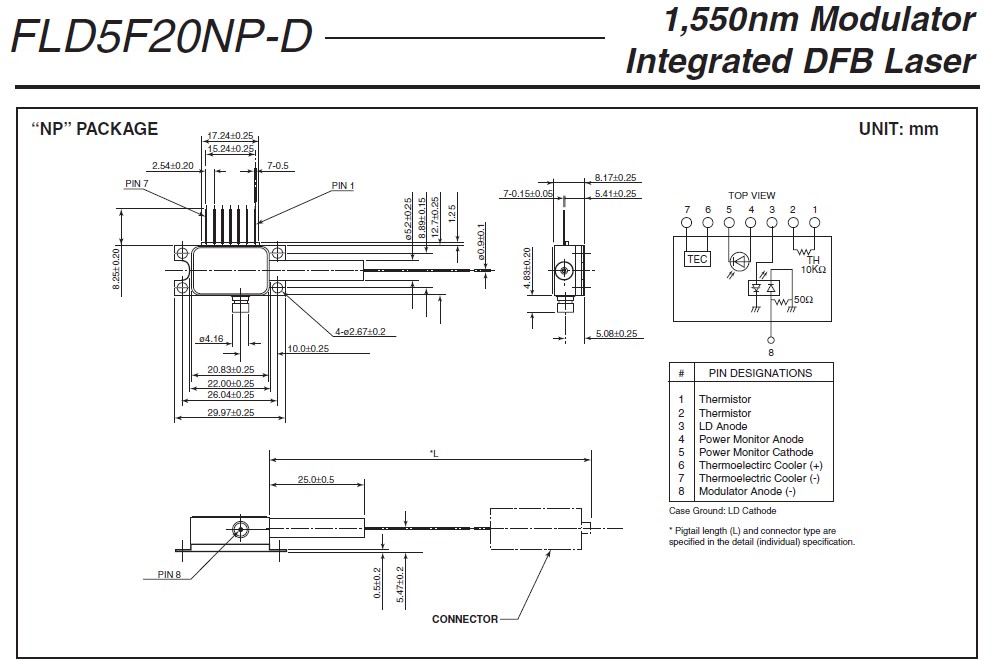

• High speed butterfly package with GPO connection
• Built-in optical isolator, monitor photodiode, thermistor, and
thermo-electric cooler

APPLICATION
This MI laser is intended for intermediate reach applications (≤40km)
at 10Gb/s.
