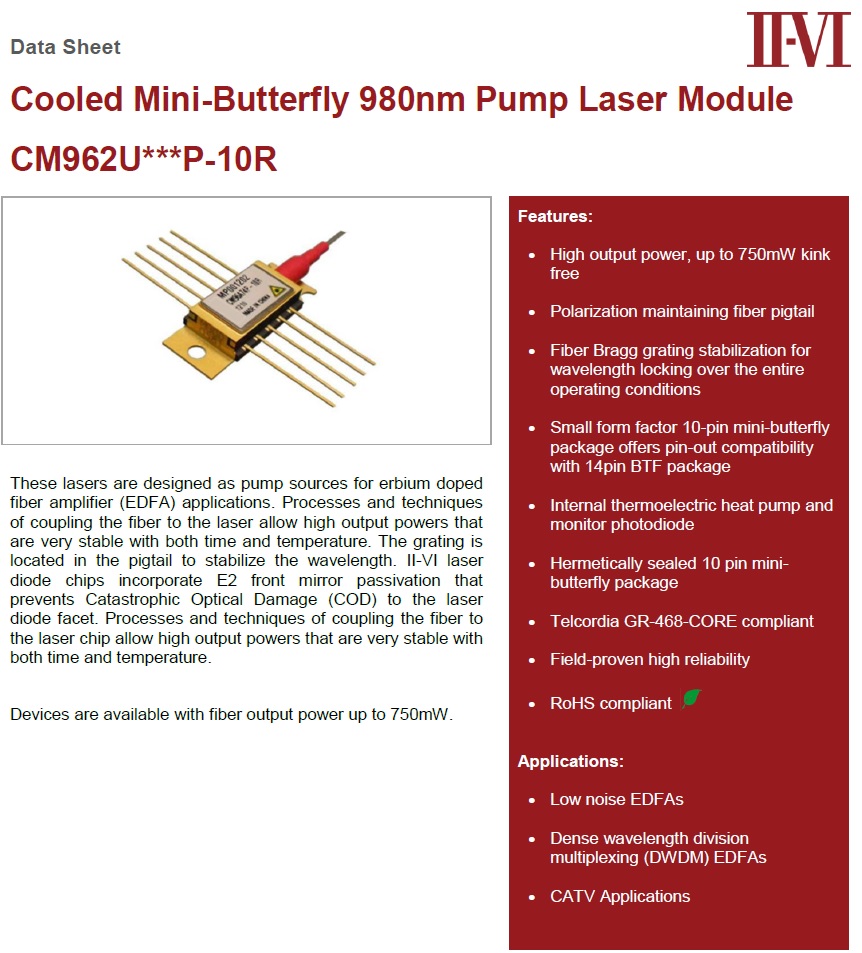

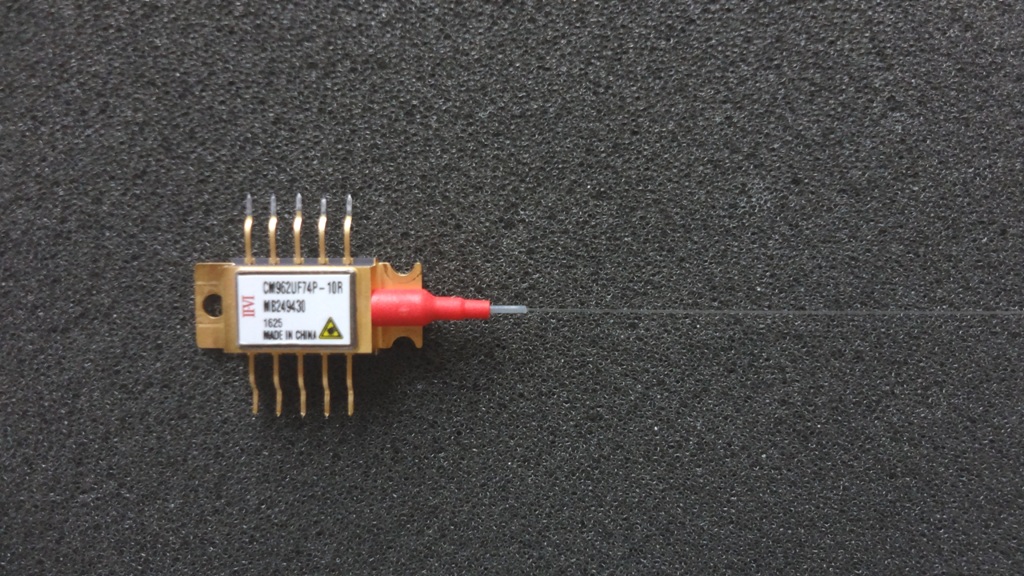

Oclaro Cooled Mini-Butterfly 980nm Pump Laser Module II-VI 750mW CM962UF74P-10R

Features

 High output power, up to 750mW kink free

 Polarization maintaining fiber pigtail

 Fiber Bragg grating stabilization for wavelength locking over

   the entire operating conditions

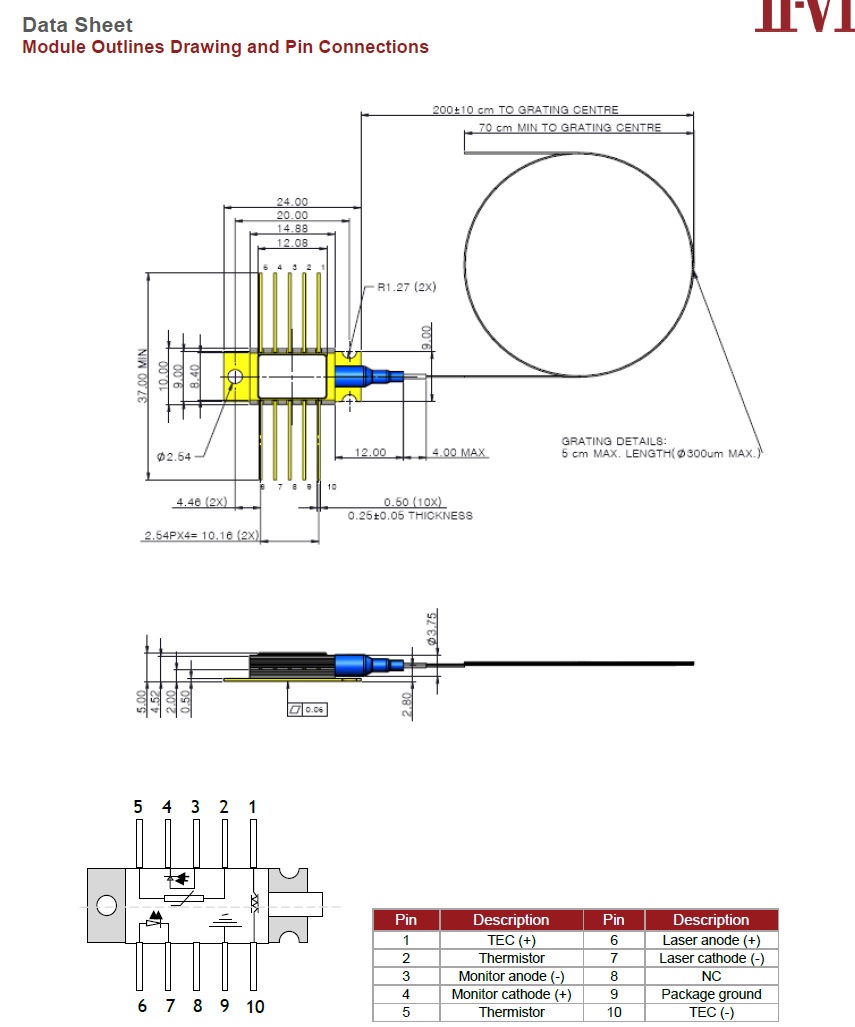

 Small form factor 10-pin mini-butterfly package offers pin-out

    compatibility with 14pin BTF package

 Internal thermoelectric heat pump and monitor photodiode

 Hermetically sealed 10 pin mini-butterfly package

 Telcordia GR-468-CORE compliant

 Field-proven high reliability

 RoHS compliant

Applications

 Low noise EDFAs

 Dense wavelength division multiplexing (DWDM) EDFAs

 CATV Applications
