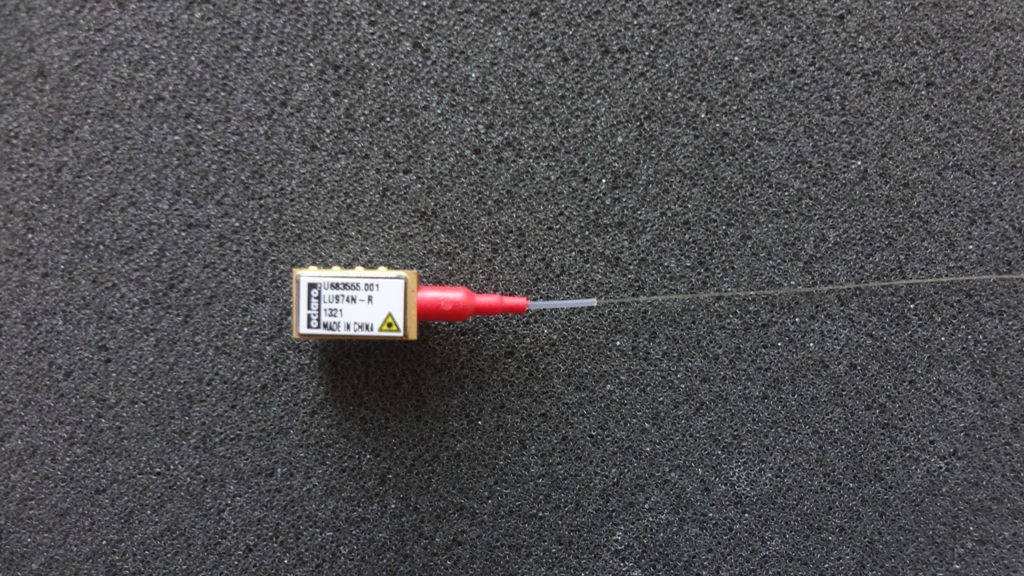

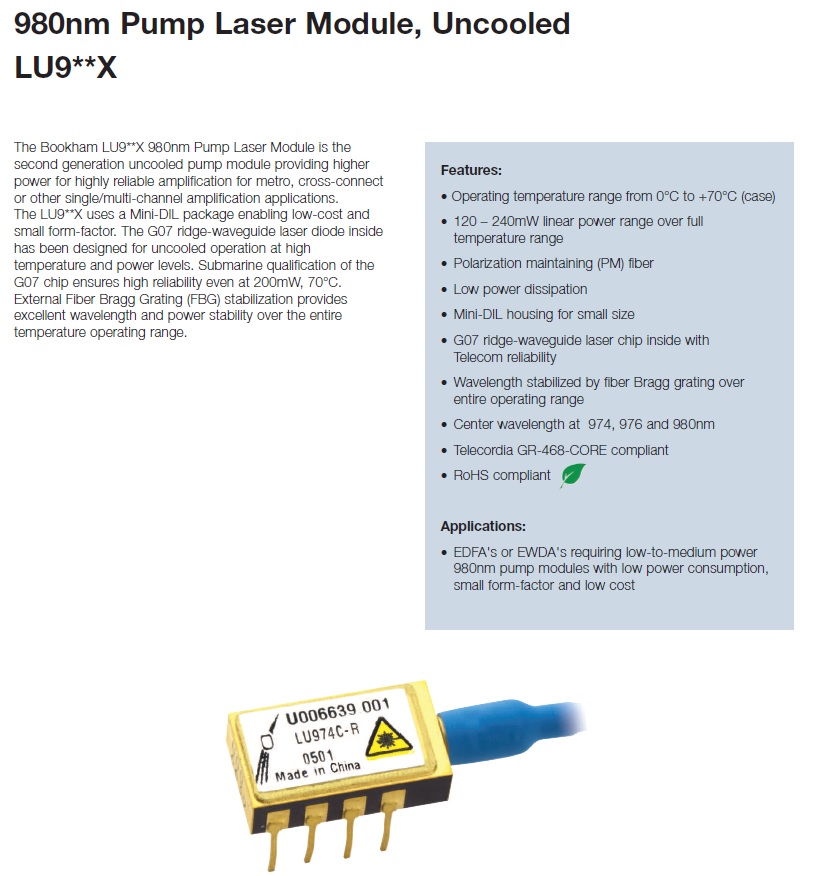

Oclaro 980nm Pump Laser Module Uncooled 200mW FBG Low Power Dissipation LC974N-R

Features

• Operating temperature range from 0°C to +70°C (case)

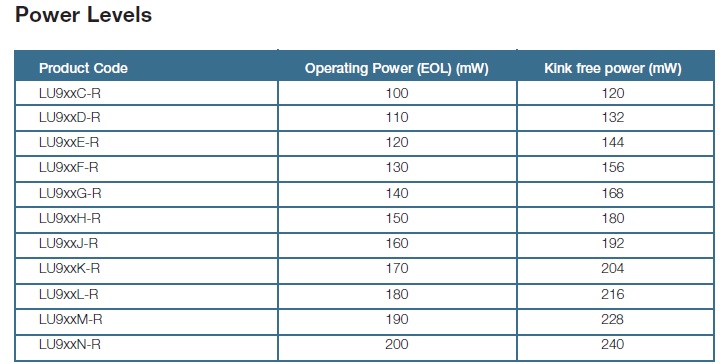

• 120 – 240mW linear power range over full temperature range
• Polarization maintaining (PM) fiber
• Low power dissipation
• Mini-DIL housing for small size
• G07 ridge-waveguide laser chip inside with
  Telecom reliability
• Wavelength stabilized by fiber Bragg grating over
  entire operating range
• Center wavelength at 974, 976 and 980nm
• Telecordia GR-468-CORE compliant
• RoHS compliant

Applications

• EDFA's or EWDA's requiring low-to-medium power
  980nm pump modules with low power consumption,

  small form-factor and low cost
