3SP 980nm Cooled Pump Laser Module 14 Pin Butterfly 680mW FBG Stabilized 1999CHP

Key Features

Up to 750 mW operating power
Extended operating temperature
range (-5 °C to +75 °C)
Fiber Bragg Grating (FBG) on SMF
or PMF pigtail
Total Power Consumption:
< 7.8 W @ 750 mW
Telcordia GR-468-CORE qualified
RoHS 6/6

Applications

High output power low noise
Erbium-Doped Fiber Amplifier
Sensors
CATV
Wavelength conversion

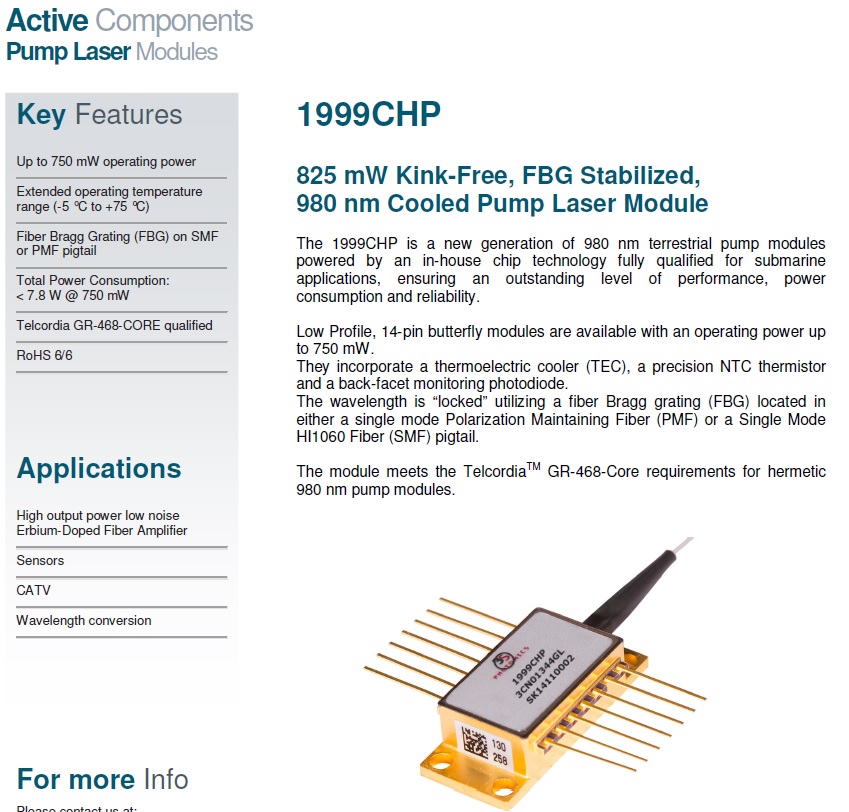

1999CHP
825 mW Kink-Free, FBG Stabilized,
980 nm Cooled Pump Laser Module
The 1999CHP is a new generation of 980 nm terrestrial pump modules
powered by an in-house chip technology fully qualified for submarine
applications, ensuring an outstanding level of performance, power
consumption and reliability.
Low Profile, 14-pin butterfly modules are available with an operating power up
to 750 mW.
They incorporate a thermoelectric cooler (TEC), a precision NTC thermistor
and a back-facet monitoring photodiode.
The wavelength is “locked” utilizing a fiber Bragg grating (FBG) located in
either a single mode Polarization Maintaining Fiber (PMF) or a Single Mode
HI1060 Fiber (SMF) pigtail.
The module meets the TelcordiaTM GR-468-Core requirements for hermetic
980 nm pump modules.
