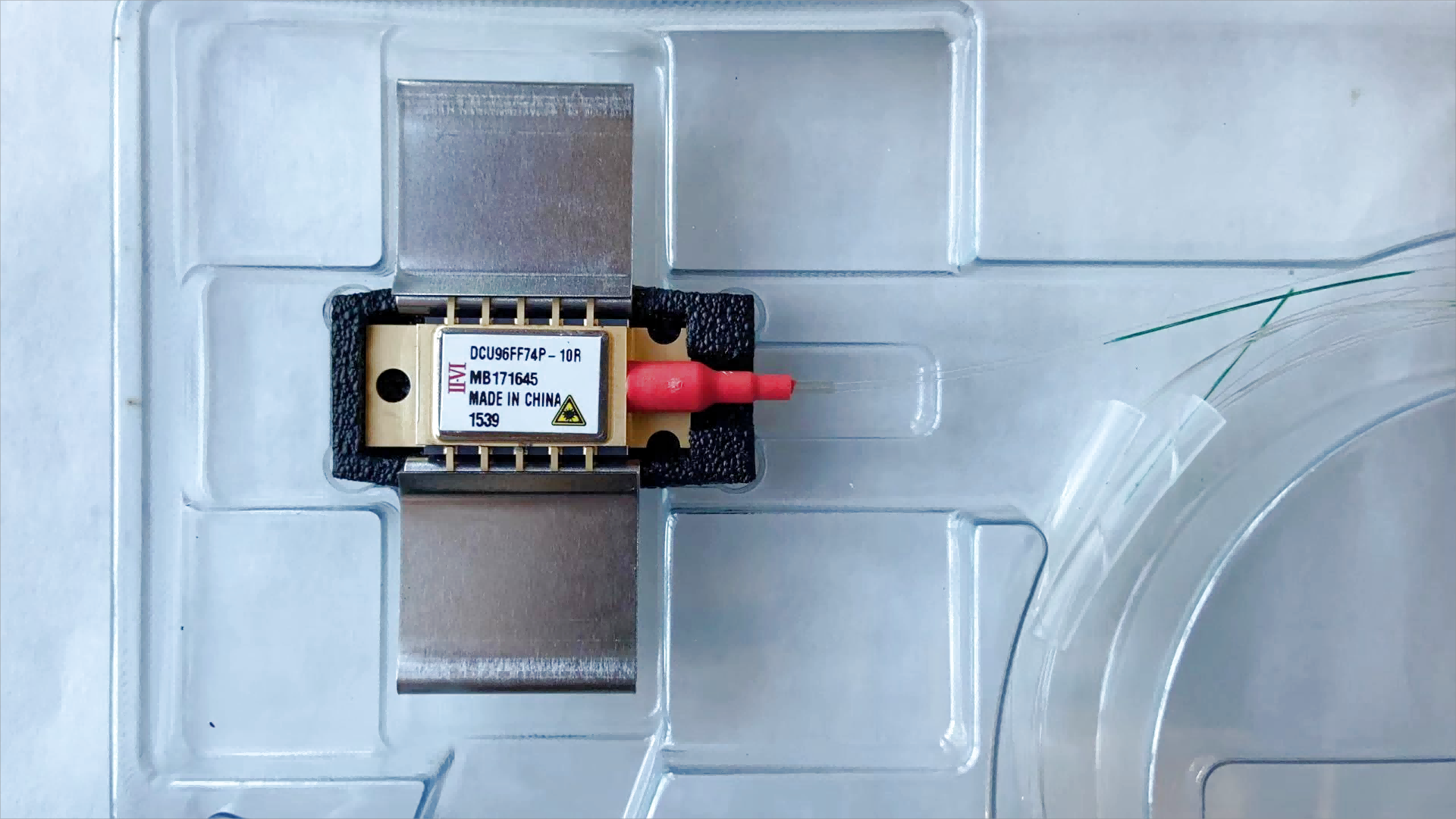

II-VI Uncooled Dual Chip 10-pin Butterfly 980nm Pump Laser 270mW DCU96FF74P-10R

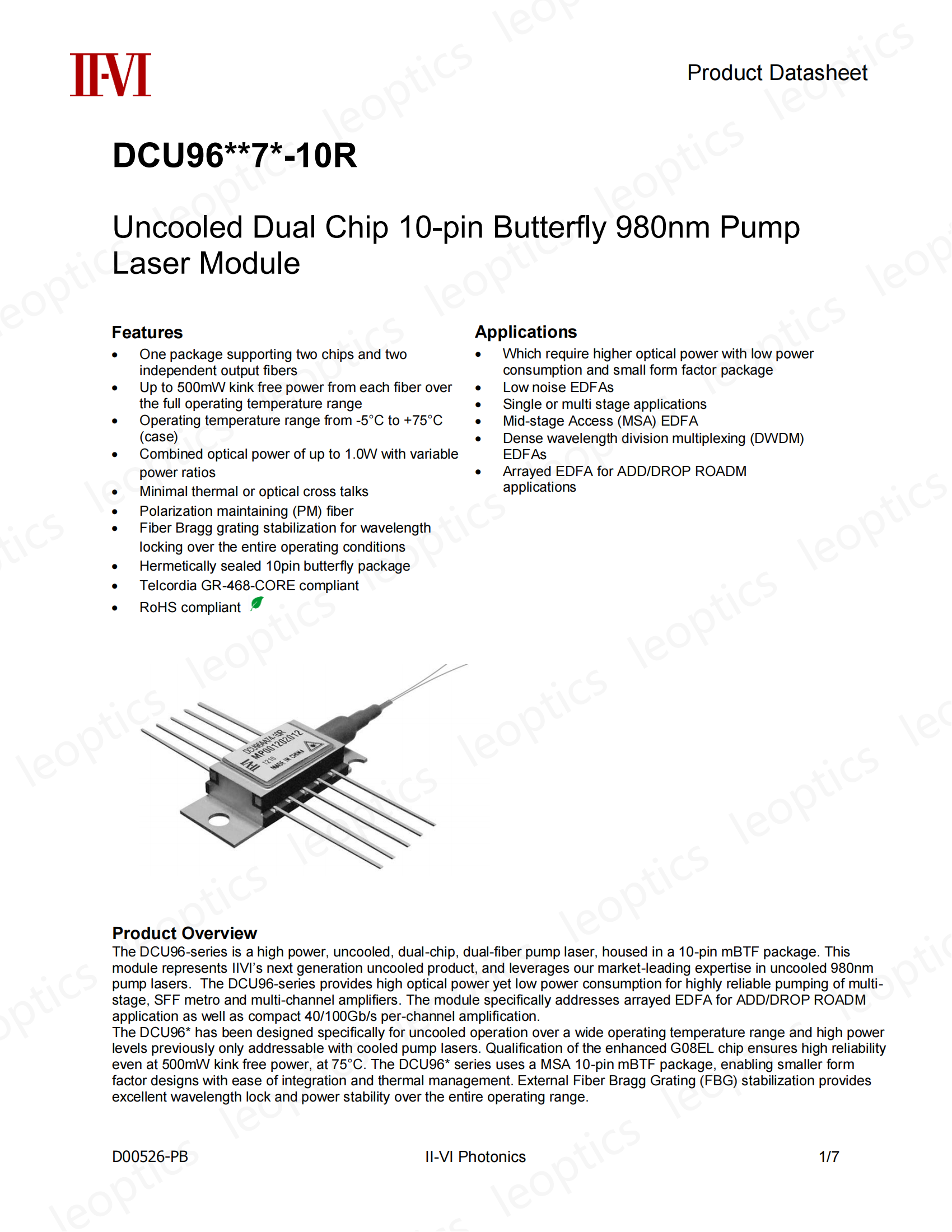

Uncooled Dual Chip 10-pin Butterfly 980nm Pump

Laser Module

Features
-One package supporting two chips and two
  independent output fibers
-Up to 500mW kink free power from each fiber over
 the full operating temperature range
-Operating temperature range from -5°C to +75°C
(case)
-Combined optical power of up to 1.0W with variable
 power ratios
-Minimal thermal or optical cross talks
-Polarization maintaining (PM) fiber
-Fiber Bragg grating stabilization for wavelength
 locking over the entire operating conditions
-Hermetically sealed 10pin butterfly package
-Telcordia GR-468-CORE compliant
-RoHS compliant

Applications

-Which require higher optical power with low power

 consumption and small form factor package

-Low noise EDFAs

-Single or multi stage applications

-Mid-stage Access (MSA) EDFA

-Dense wavelength division multiplexing (DWDM)

 EDFAs

-Arrayed EDFA for ADD/DROP ROADM

 applications
