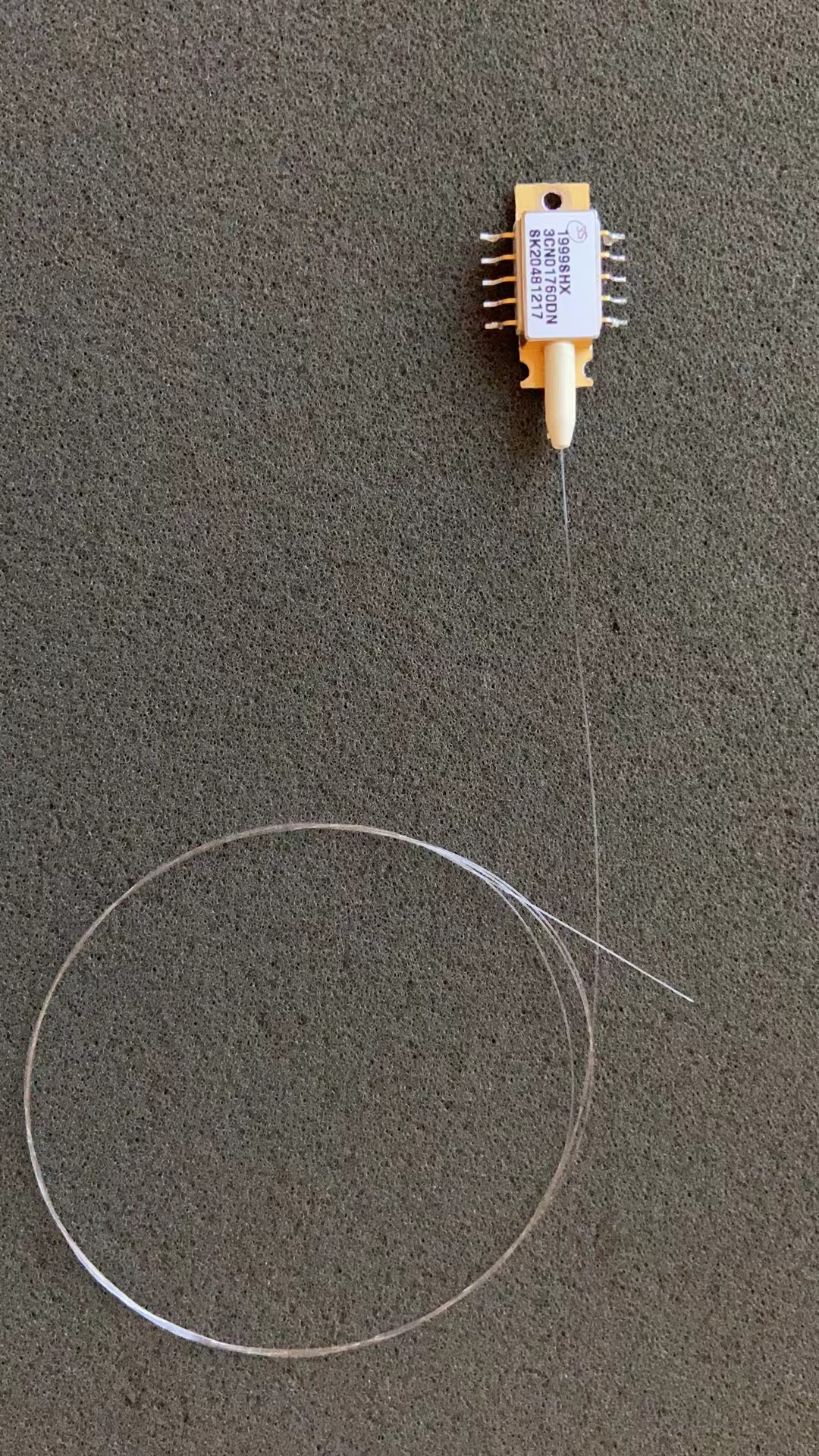

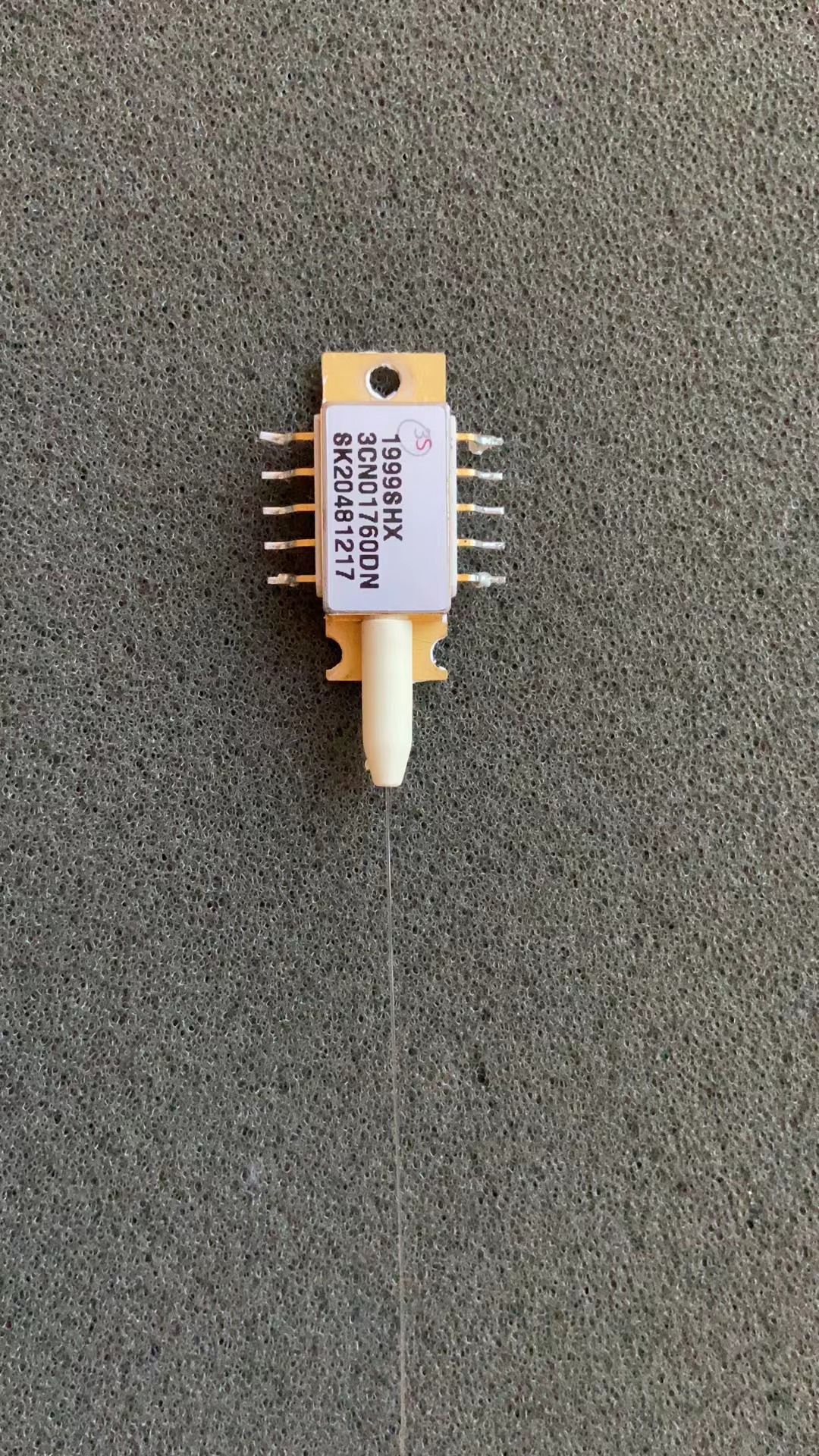

3SP 980nm Pump Laser FBG SMF 10Pin Mini-butterfly 3CN01760DN 460mW 1999SHX

1999SHX

980nm Low Power Consumption 10-pin mini-butterfly Pump Module Up to 600mW kink-free

The 1999SHX is a new generation of 980 nm terrestrial pump modules powered

by an in-house chip technology fully qualified, ensuring an outstanding level of

performance and reliability.

Low Profile, 10-pin butterfly modules are available with an operating power up to

540 mW. They incorporate a thermoelectric cooler (TEC), a precision NTC

thermistor and a back-facet monitoring photodiode.

The 1999SHB family has been designed to ensure high wavelength and power

stability performance at low power with a large dynamic range.

The 1999SHB pump module meets the TelcordiaTM GR-468-Core requirements

for hermetic 980 nm pump modules.

Key Features

Up to 540mW Pop

Small form factor, hermetically sealed

10-pin mini-butterfly package

Pin-out compatibility with 14-pin BTF

package

Extended operating temperature range

(-5 °C to +75 °C)

Ultra Low Power Consumption

(Tchip@40°C)

Fiber Bragg Grating (FBG) on SMF

High wavelength and power stability

RoHS compliant

Applications

High output power low noise Erbium-Doped Fiber Amplifiers

Dense wavelength division multiplexing

CATV
