Lumentum 50G Narrow Linewidth OIF Micro ITLA C Band 96CH 5-14dBm 22023180

Lumentum narrow-linewidth tunable lasers are a key component of today's agile transmission

modules support the rapid deployment of next‐ generation IP-based voice, data, and video services.

The assemblies meet the needs of advanced modules that require fast wavelength tuning over C‐band

in an MSA form factor with reduced power consumption. The architecture and command set is based on

the familiar OIF micro‐ITLA IA standard.

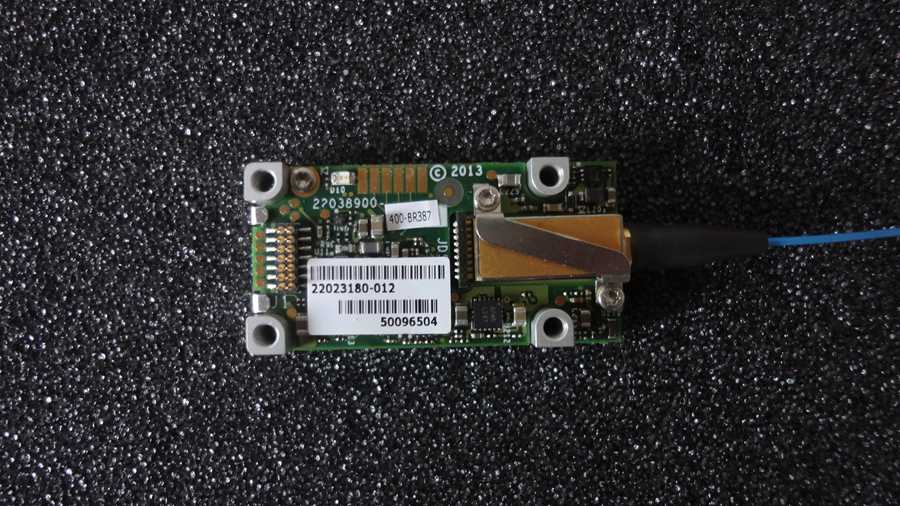

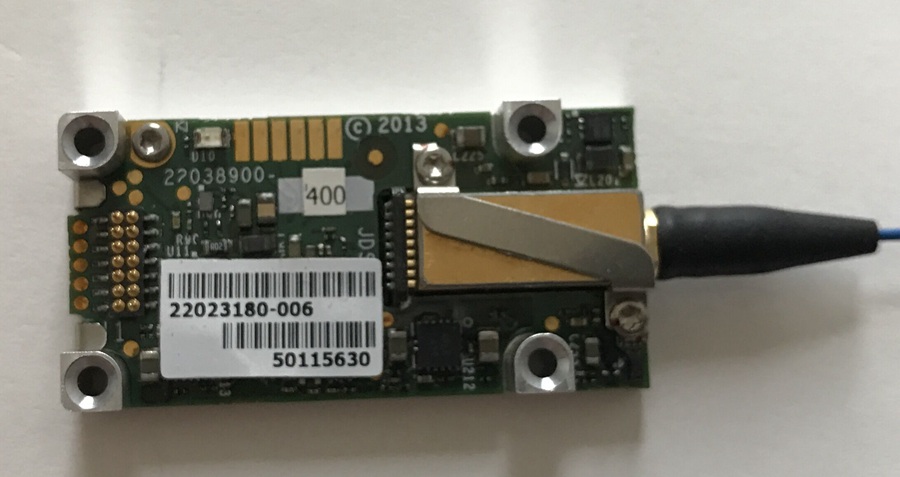

The key elements of the 6205‐u micro‐ITLA are the sampled grating distributed Bragg reflector

(SG‐DBR) laser, monolithically integrated with a semiconductor optical amplifier (SOA) and a micro

wavelength locker, all enclosed in a high‐reliability, hermetically‐sealed TOSA package.

The integrated SOA acts as a shutter during wavelength switching and as an optional variable

optical attenuator (VOA) for transmitter power control.

The RS232 communication interface is based on the OIF MSA standard and provides for comprehensive

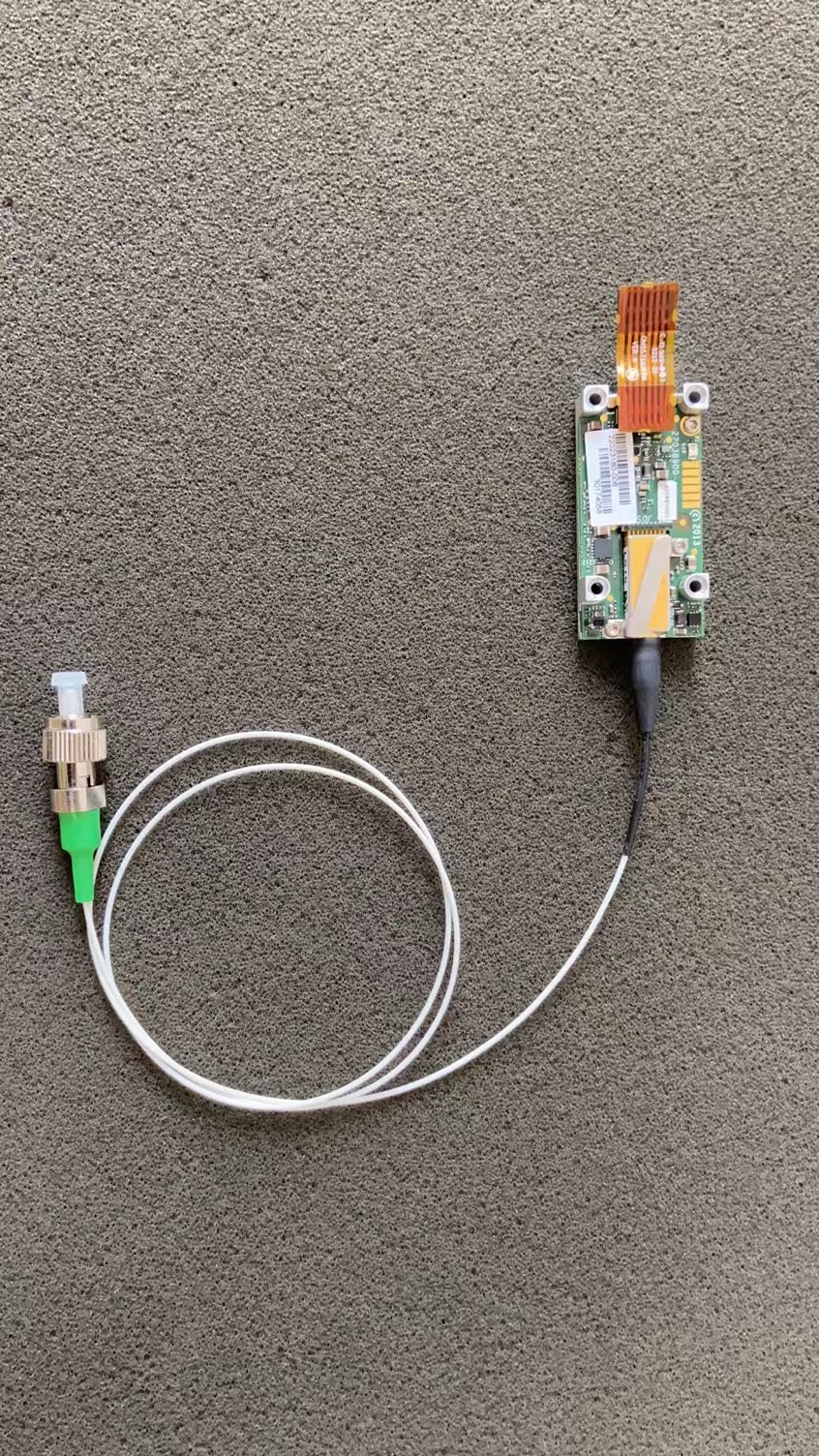

control and reporting functionality. This NLW μITLA has a polarization‐maintaining fiber pigtail and is

shipped with an SC connector to facilitate customer incoming tests.

Features

Narrow linewidth (<500 kHz)

50 GHz channel spacing

Standard and extended C‐band

>37 nm operating range

Fast (<< 1 s) channel switching frequency fine tuning

VOA function

Polarization‐maintaining fiber pigtail

Hermetically‐sealed tunable TOSA package with integrated wavelength locker

Self‐contained microprocessor control and monitor electronics

Simple RS232 communication

Low power consumption

Applications

Coherent transmission and local oscillator sources

DWDM sparing

Dynamic wavelength provisioning

Dynamic add/drop multiplexers
