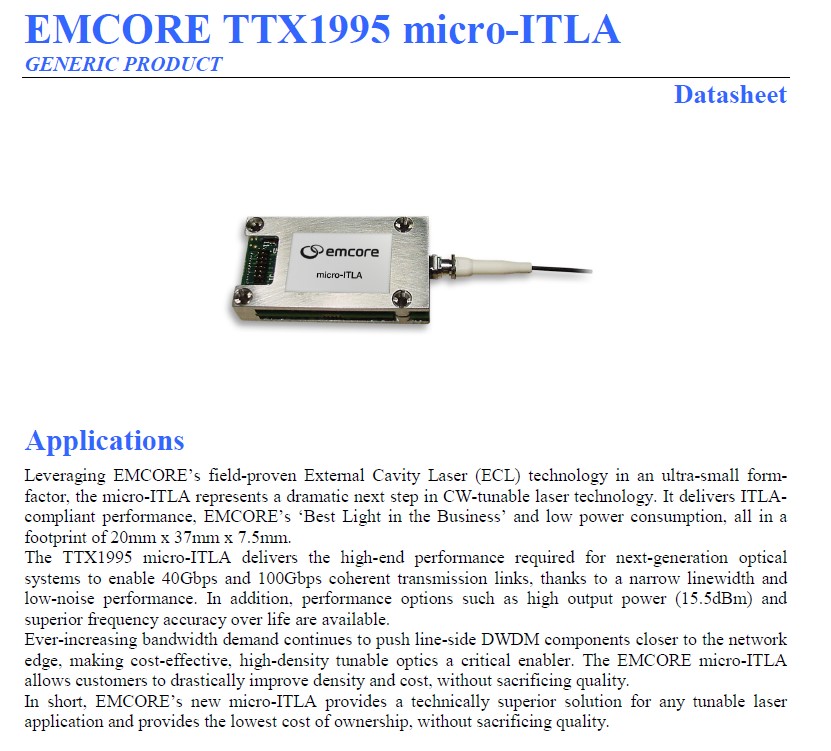

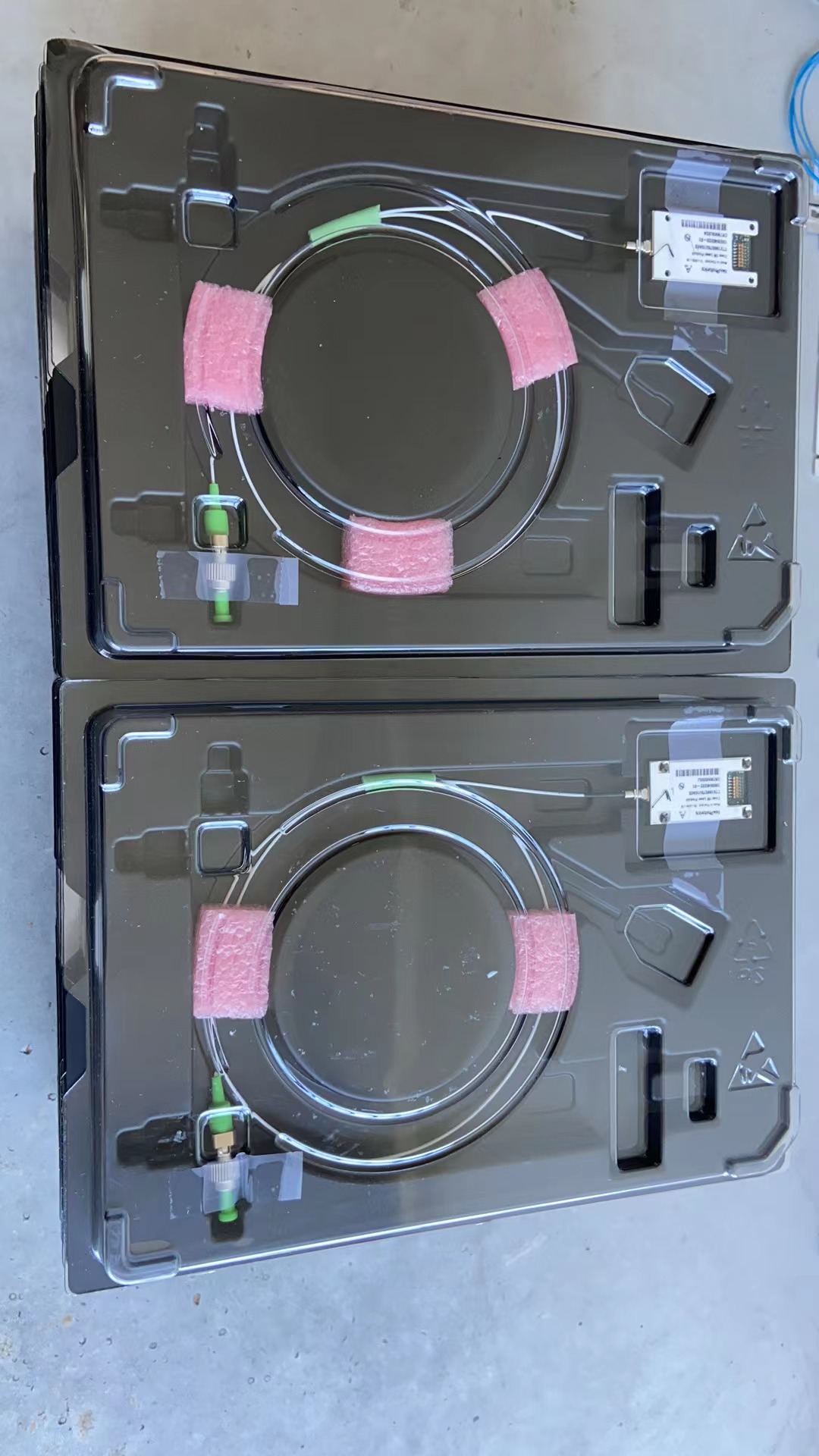

NeoPhotonics 104CH Micro-ITLA C Band 16dBm Narrow Linewidth 20kHz TTX199575H10AC0 TTX199575U10AE0

Product Features

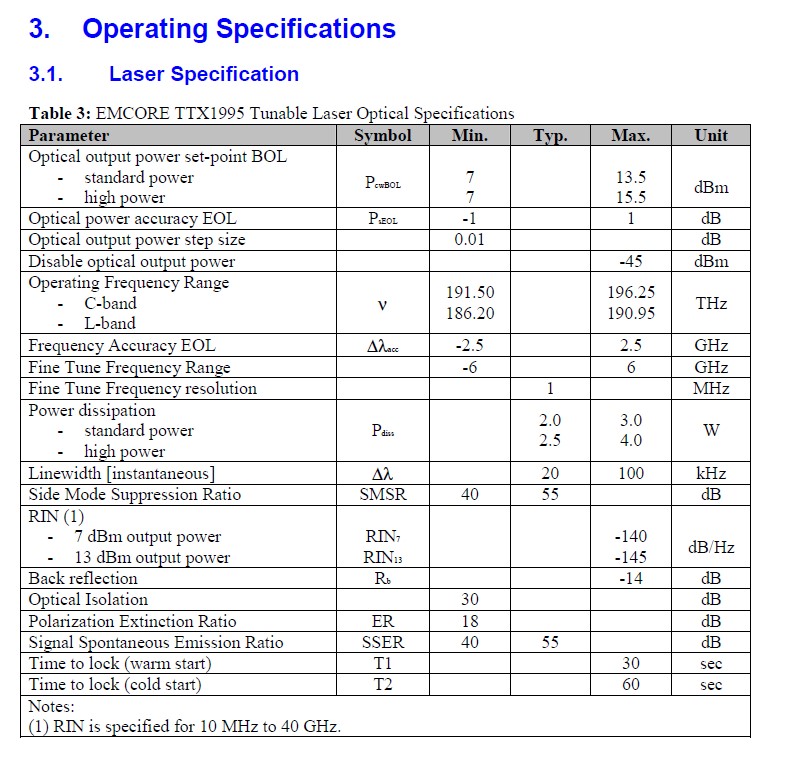

• Full C-band and L-band tuning
• Grid agnostic, tune to any grid, any frequency
• Best light in the business
 o Narrow linewidth (typical 20kHz)
 o High SMSR (typical 55dB)
 o Low intensity noise (<-145dB/Hz)
• ±2.5GHz freq. accuracy

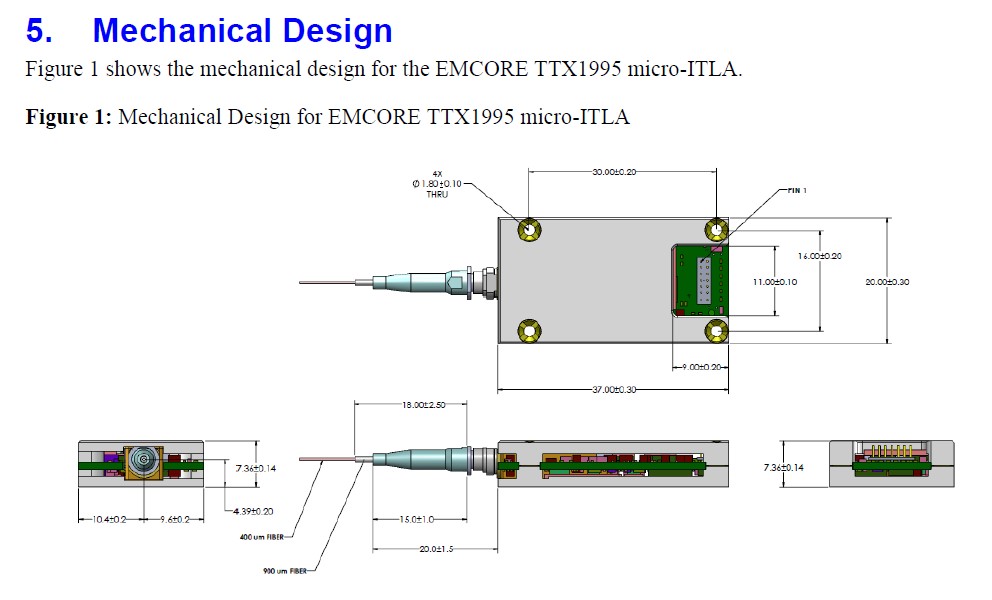

• LxWxH: 20 x 37 x 7.5 mm3 • Advanced features
 o In-operation Frequency Adjust (±6GHz)
 o In-operation Power Adjust (6dB)

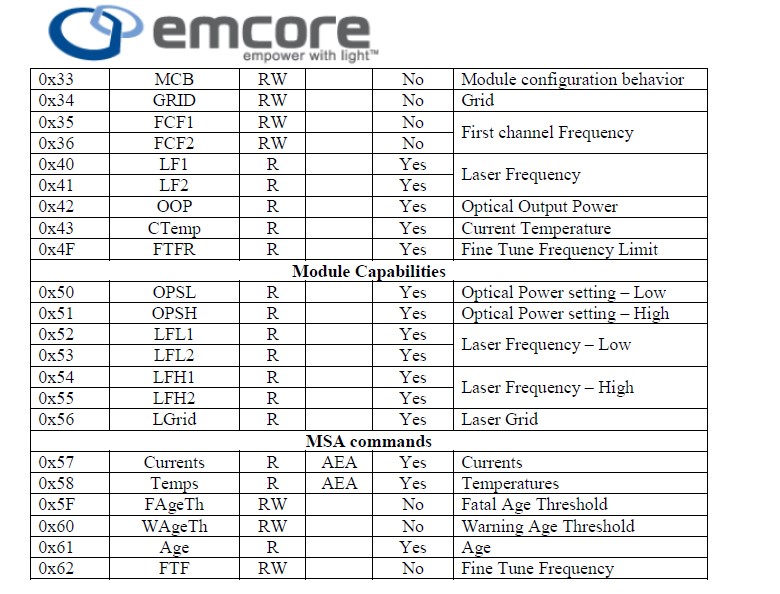

 o Digital diagnostics
• Further advanced features to be introduced
