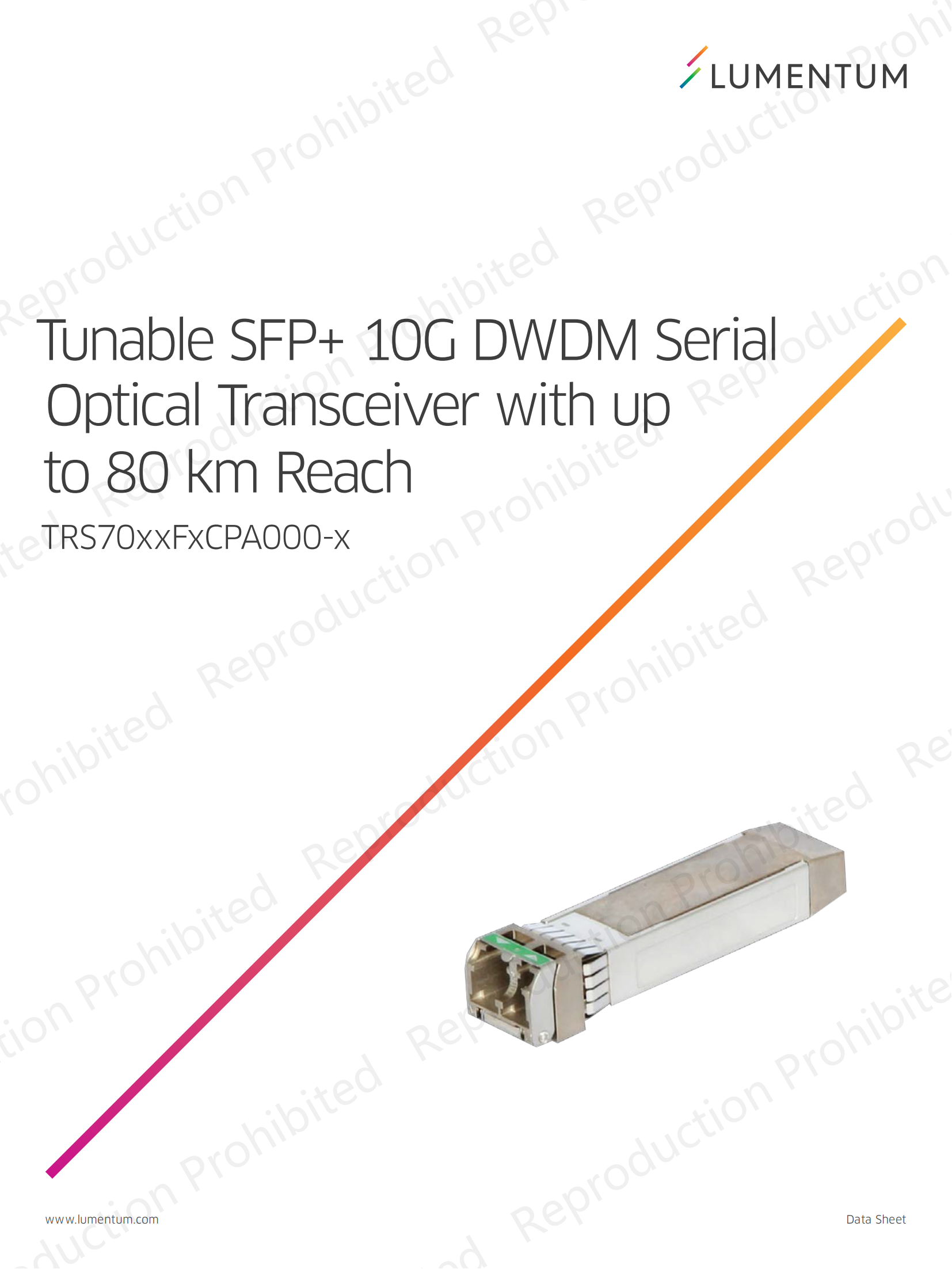

Lumentum T-SFP+ 10G DWDM Serial Optical Transceiver 80km C Band 1528-1568
Lumentum T-SFP+ 10G DWDM Serial Optical Transceiver 80km C Band 1528-1568
Lumentum T-SFP+ 10G DWDM Serial Optical Transceiver 80km C Band 1528-1568
Key Features
• 1550 nm ITU-T C-band 50 GHz spacing tunable DWDM SFP+
transceiver
• Data rate 9.95-1.3 Gbps
• Supports 80 km link distances
• Negative/zero chirp transmitter with ILMZ (integrated laser
Mach Zehnder) TOSA
• APD receiver with limiting amplifier
• Positive power supply lines: 3.3 V
• Operating case temperature range: up to industrial temperature
• Compact size (56.5 mm L x 13.9 mm W x 11.85 mm H)
Compliance
• SFF-8431 – Enhanced 8.5 and 10 Gigabit Small Form Factor
Pluggable Module (SFP+)
• SFF-8432 - Improved Pluggable Form factor
• SFF-8690 - Tunable SFP+ Memory Map for ITU Frequencies
• SFF-8472 - Diagnostic Monitoring Interface for Optical Xcvrs
• INF-8074i - SFP (Small Form Factor) Transceiver
• IEEE802.3ae CL 52 - IEEE 802.3 Standard (10Gigabit Ethernet Clause)
• MIL-STD-883, Method 3015.4
• IEC61000-4-2:Edition1 (Air Discharge)
• Class 1 Laser Safety
