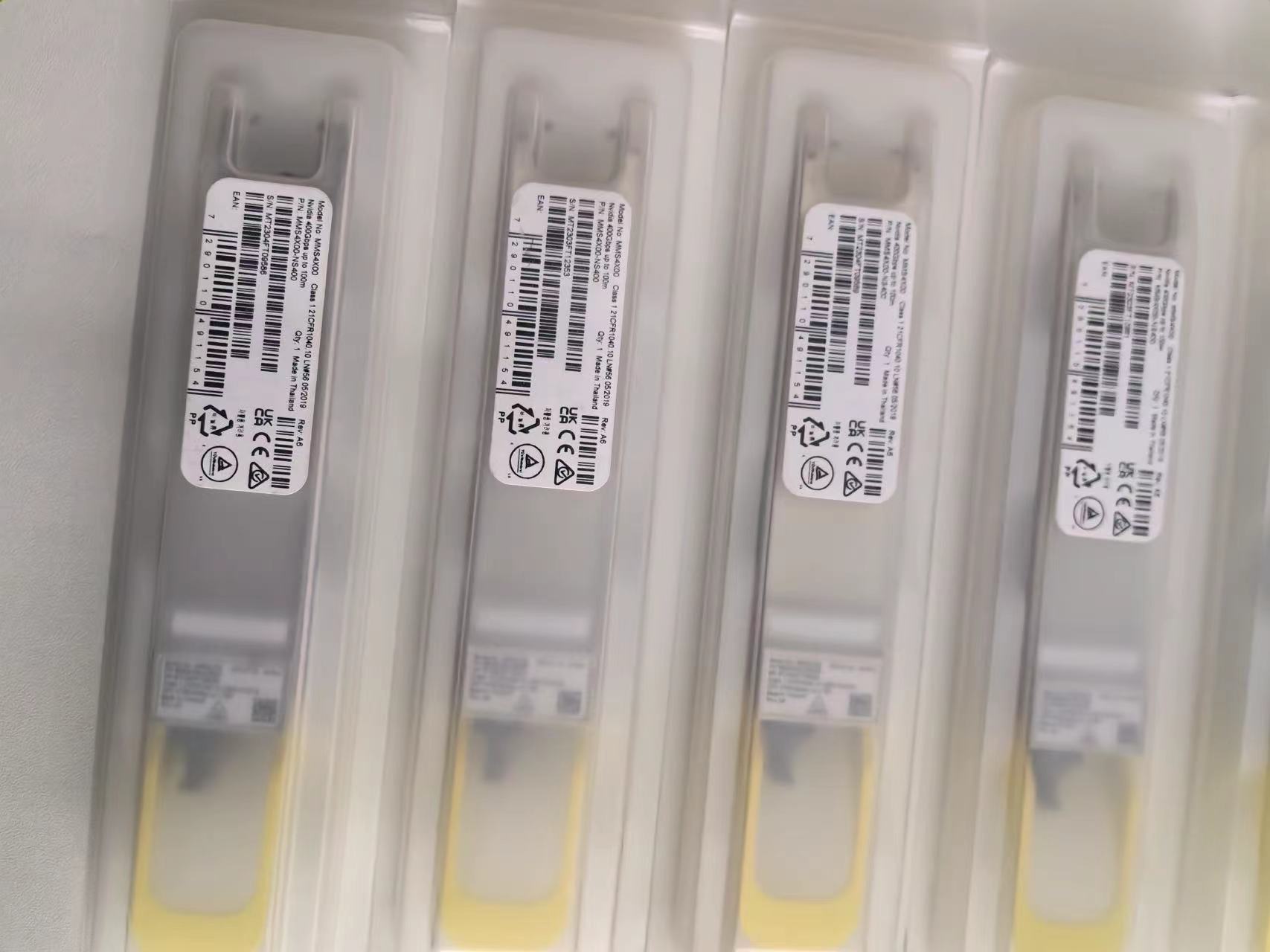

NVIDIA MMS4X00-NS400 400G DR4 Single Mode Transceiver Single-port OSFP 1310nm

https://docs.nvidia.com/networking/display/mms4x00ns400

Introduction

The NVIDIA MMS4X00-NS400 is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, DR4 single mode

parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Datacenter Reach 4-channel (DR4) design

uses 100G-PAM4 modulation and has a maximum fiber reach of 100-meters and assumes two optical patch panels in the link.

It has identical design and internals as the QSFP112 version with different connector shells.

The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol

of the connected switch. The OSFP shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 connector cage.

When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver

automatically creating a 200G speed and reducing power consumption.

Single mode optics is denoted by a yellow-colored pull tab and optical fiber. Green plastic shell on the MPO-12/APC

optical connector denotes Angled Polish Connector (APC) and is not compatible with the aqua colored Ultra-flat Polished Connectors (UPC).

NVIDIA’s Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end InfiniBand systems

and a rigorous production tested to ensure the best out-of-the-box installation experience, performance, and durability.

Key Features

Applications

Used in ConnectX-7/OSFP adapters linked to Twin-port transceivers in 2x400G IB/EN switches
