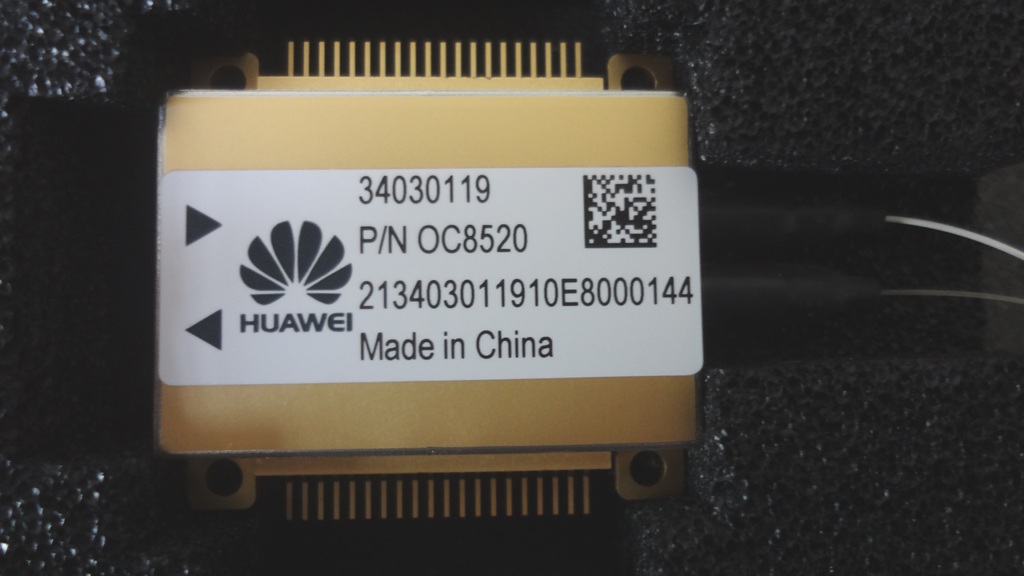

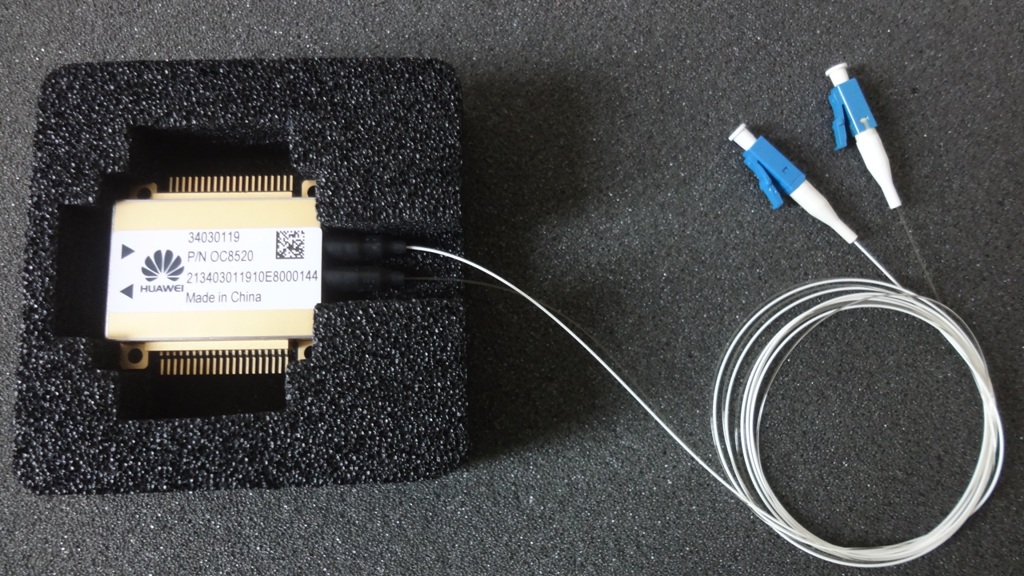

HUAWEI 100G DP-QPSK Fully Integrated Multirate Coherent Receiver OC8520

Coherent Receiver

Integrated Coherent Receiver combines polarization beam splitting optics for the

signal and local oscillator inputs, two matched optical 90° hybrids with monolithically

integrated balanced photodetectors, and four linear trans-impedance amplifiers (TIAs)

with differential outputs in a compact surface-mount package. The receiver is available

in both C- and L-band versions.

The device separates the incoming signal in X and Y polarization channels. Optical 90° hybrids

 subsequently demodulate the incident signal for each polarization into its in-phase (I) and

quadrature (Q) phase channels, relative to an external local oscillator laser source. The phase

channels are converted to electrical signals by pairs of balanced photodetectors that are

monolithically integrated with the optical 90° hybrids, and subsequently amplified by linear

trans-impedance amplifiers (TIAs). The TIAs feature integrated peak detectors and support

both manual and automatic gain control.

Fully integrated dual polarization coherent receiver:

•Polarization beam splitter

•Optical 90° hybrids with integrated balanced photodetectors

•Linear trans-impedance amplifiers with peak detector output

•Selectable automatic / manual gain control

•Conforms with OIF-DPC-RX-01.2 implementation agreement, Type 1 form factor

•Up to 32 Gbaud symbol rate

•25 GHz bandwidth on each lane

•C- and L-band version available

100 Gb/s DP-QPSK coherent transmission systems

200 Gb/s DP-16QAM coherent transmission systems

OIF MSA 100G long-haul transmission modules
