Overview

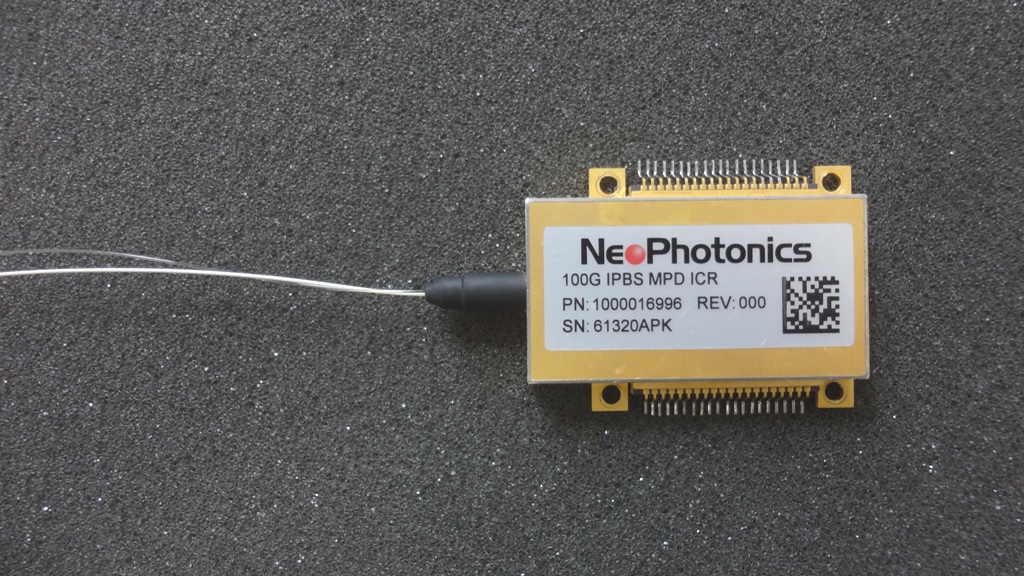

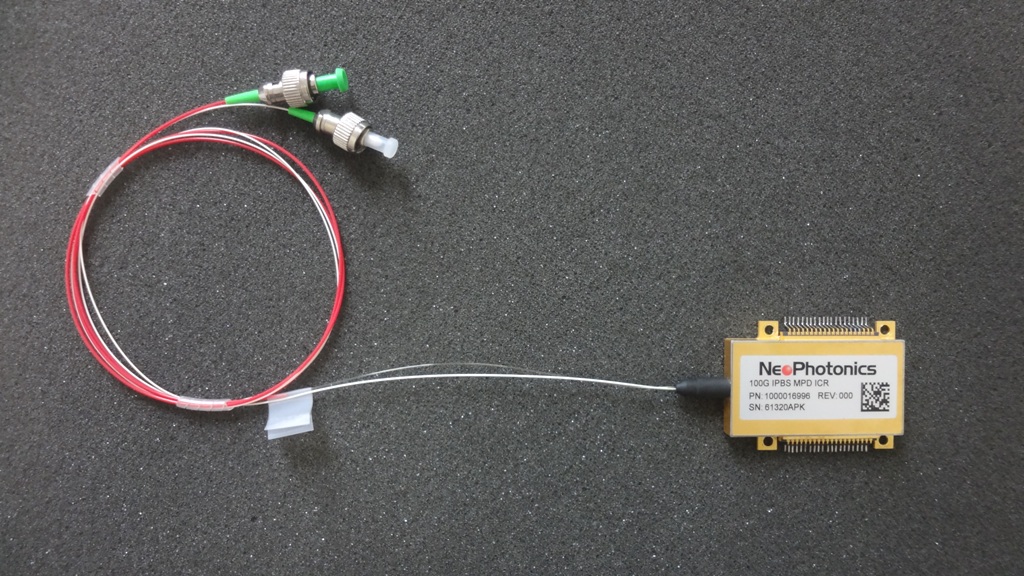

NeoPhotonics Type 1 Integrated Coherent Receiver provides advanced demodulation

to analyze the state-of-polarization and optical phase of a phase-modulated signal

relative to an externally-supplied optical reference. This enables the recovery of the

phase-polarization constellation of 100 G/s Dual Polarization Quadrature Phase Shift

Keyed (DP-DQPSK) format signals as well as 8-QAM (Quadrature Amplitude Modulation)

and 200G 16-QAM format signals. The ICR incorporates four sets of high-sensitivity

balanced photodiodes with four differential linear amplifiers to provide four output channels

at 32 GBaud and above. The Coherent Receiver is compliant with Optical Internetworking

Forum standard “Implementation Agreement for Integrated Dual Polarization Intradyne

Coherent Receivers” OIF-DPC-RX-01.0.

Features and Benefits

· Compliant with OIF "Implementation Agreement for Integrated Dual Polarization

   Intradyne Coherent Receivers" OIF-DPC-RX-01.0

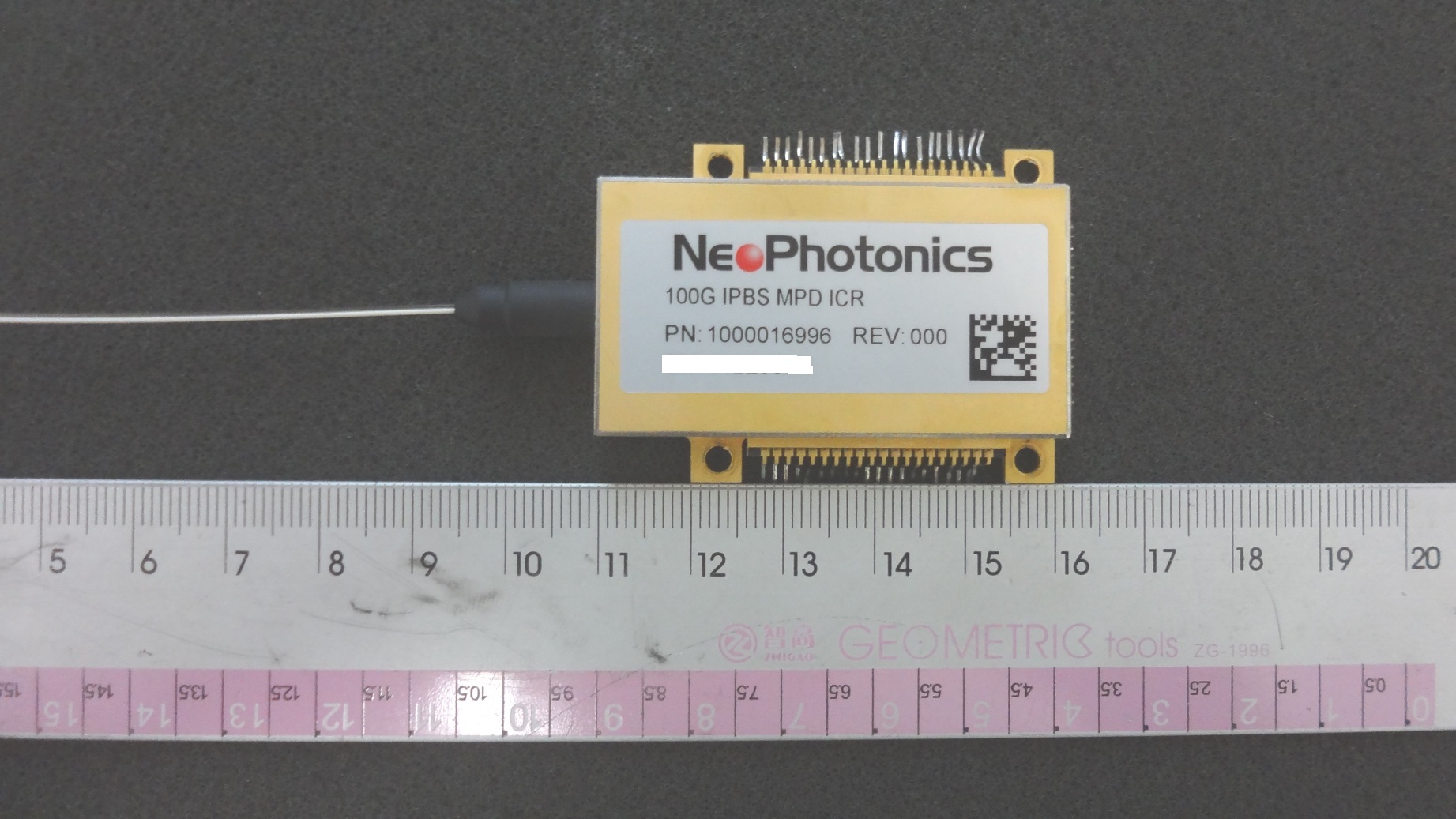

· 50x37x6mm C-band, L-band, A-band, Up to 32 Gbaud
· High performance – very high responsivity,  high CMRR
· Integrated VOA and MPD options available
· -5°C to 80°C operation
· Telcordia GR-1221-Core compliant
· Telcordia GR-468-Core compliant
