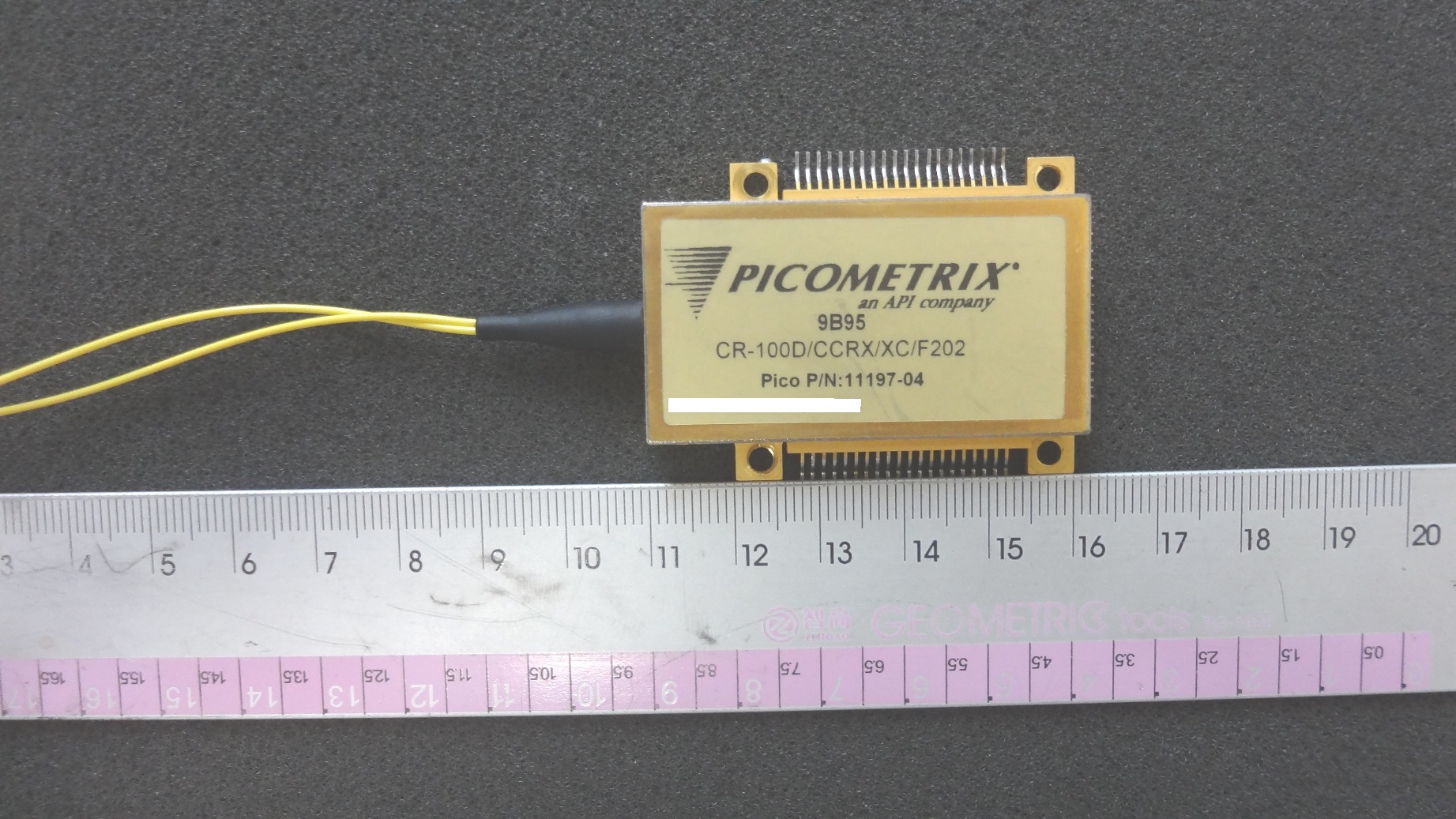

Picometrix 100G ICR Integrated Coherent Receiver DP-DQPSK 8-QAM OIF CR-100D

Please refer to NeoPhotonics 100G ICR:

https://www.neophotonics.com/product/type-1-icr/

Overview

NeoPhotonics Type 1 Integrated Coherent Receiver provides advanced

demodulation to analyze the state-of-polarization and optical phase of

a phase-modulated signal relative to an externally-supplied optical reference.

This enables the recovery of the phase-polarization constellation of 100 G/s

Dual Polarization Quadrature Phase Shift Keyed (DP-DQPSK) format signals

as well as 8-QAM (Quadrature Amplitude Modulation) and 200G 16-QAM

format signals.

The ICR incorporates four sets of high-sensitivity balanced photodiodes with

four differential linear amplifiers to provide four output channels at 32 GBaud and above.

The Coherent Receiver is compliant with Optical Internetworking Forum standard

“Implementation Agreement for Integrated Dual Polarization Intradyne Coherent Receivers”

OIF-DPC-RX-01.0.

Features and Benefits

· Compliant with OIF "Implementation Agreement for
  Integrated Dual Polarization Intradyne Coherent Receivers" OIF-DPC-RX-01.0
· 50x37x6mm
· C-band, L-band, A-band, Up to 32 Gbaud
· High performance – very high responsivity,  high CMRR
· Integrated VOA and MPD options available
· -5°C to 80°C operation
· Telcordia GR-1221-Core compliant
· Telcordia GR-468-Core compliant
