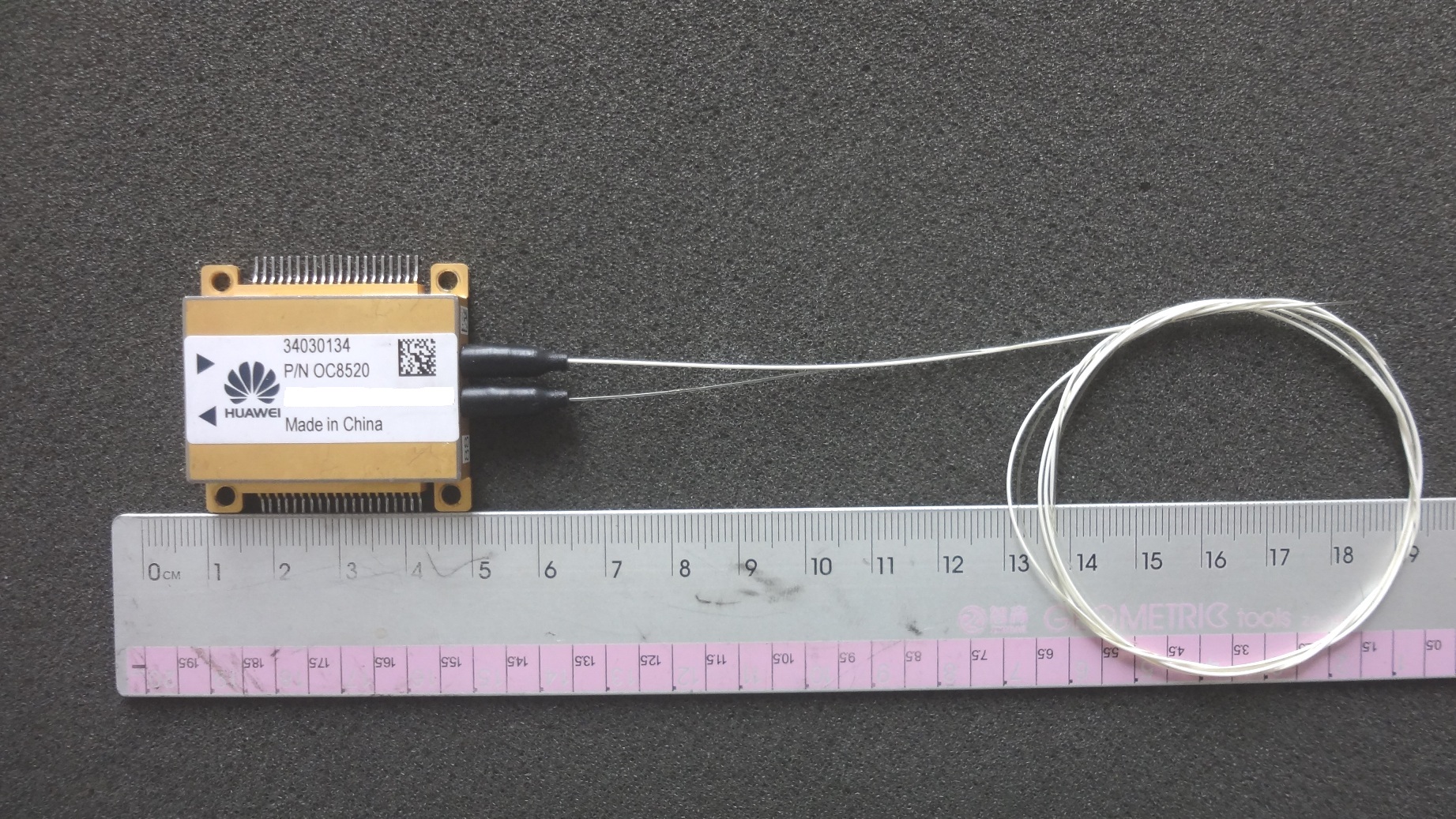

HUAWEI 200G ICR Integrated Coherent Receiver DP-DQPSK 8-QAM C Band 34030134

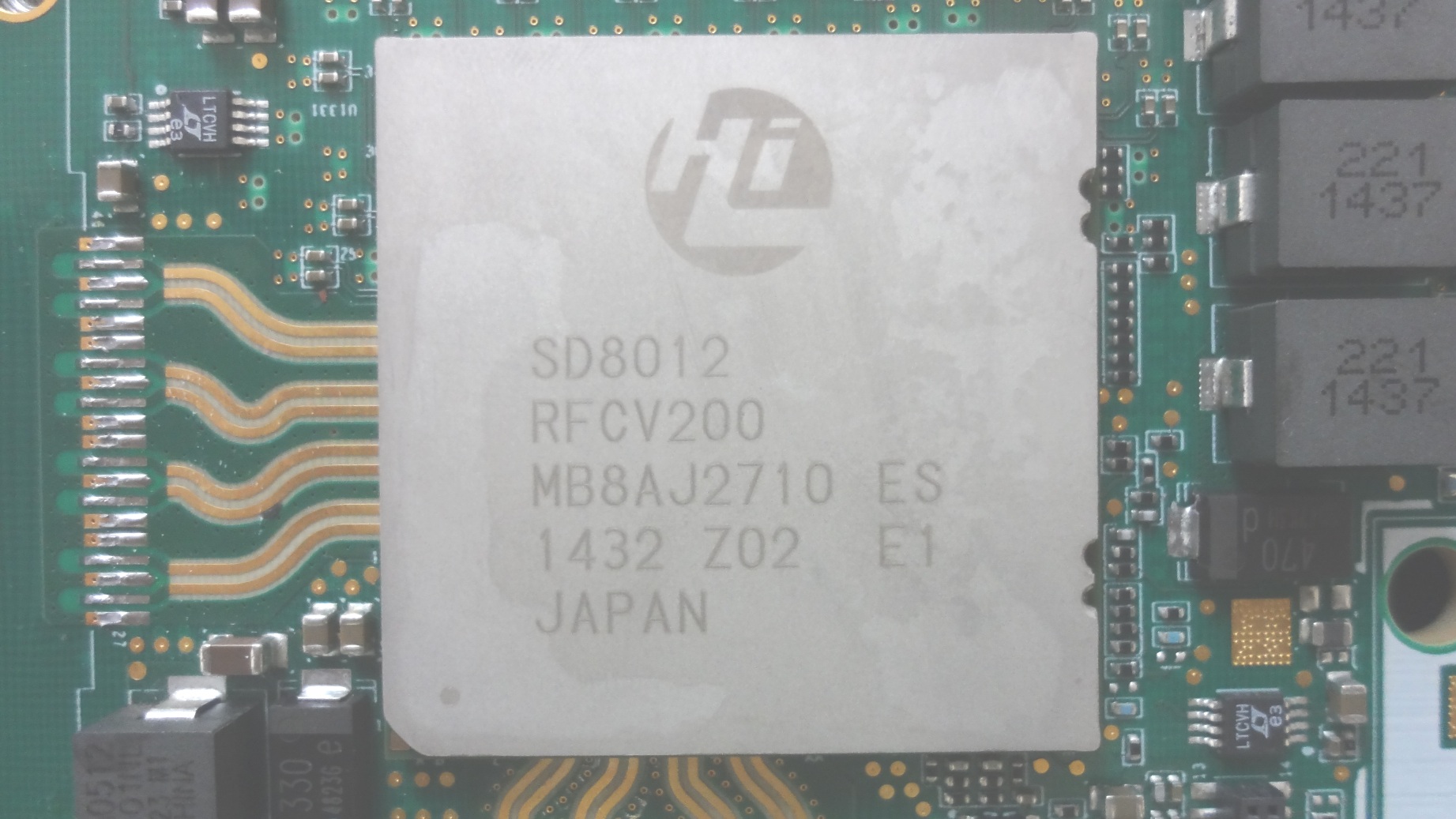

Matching HUAWEI HISILICON 200Gbs Chip RFCV200

Please refer to Neophotonics 200G ICR

https://www.neophotonics.com/product/hbw-icr/

Overview

Designed for next-generation high baud rate linecards, the NeoPhotonics High Bandwidth

Coherent Receiver provides advanced demodulation to analyze the state-of-polarization

and optical phase of a phase-modulated signal relative to an externally-supplied optical reference.

This enables the recovery of the phase-polarization constellation of  200 G/s Dual Polarization

Quadrature Phase Shift Keyed (DP-DQPSK) format signals as well as 8-QAM (Quadrature Amplitude Modulation)

and 400G 16-QAM format signals.

The High Bandwidth ICR incorporates four balanced photodiodes with four differential linear

amplifiers to provide four output channels at 64 GBaud and above.

The form factor of the High Bandwidth Coherent Receiver is compliant with Optical Internetworking

Forum standard Implementation Agreement for Micro Integrated Intradyne Coherent Receivers;

IA # OIF-DPC-MRX-01.0

Features and Benefits

·Compliant with Optical Internetworking Forum standard Implementation

  Agreement for Micro Integrated Intradyne Coherent Receivers; IA #   OIF-DPC-MRX-01.0

·Polarization Intradyne Coherent Receivers" OIF-DPC-MRX-01.2 Type 1

·19x12x5mm

·C-band Up to 64 Gbaud

·High Responsivity

·Smallest ICR available

·Integrated VOA and MPD option

·-5°C to 80°C operation

·Telcordia GR-1221-Core compliant

·Telcordia GR-468-Core compliant
