U2T 43 Gb/s High Gain Differential Photoreceiver Finisar Detector MPRV1331A

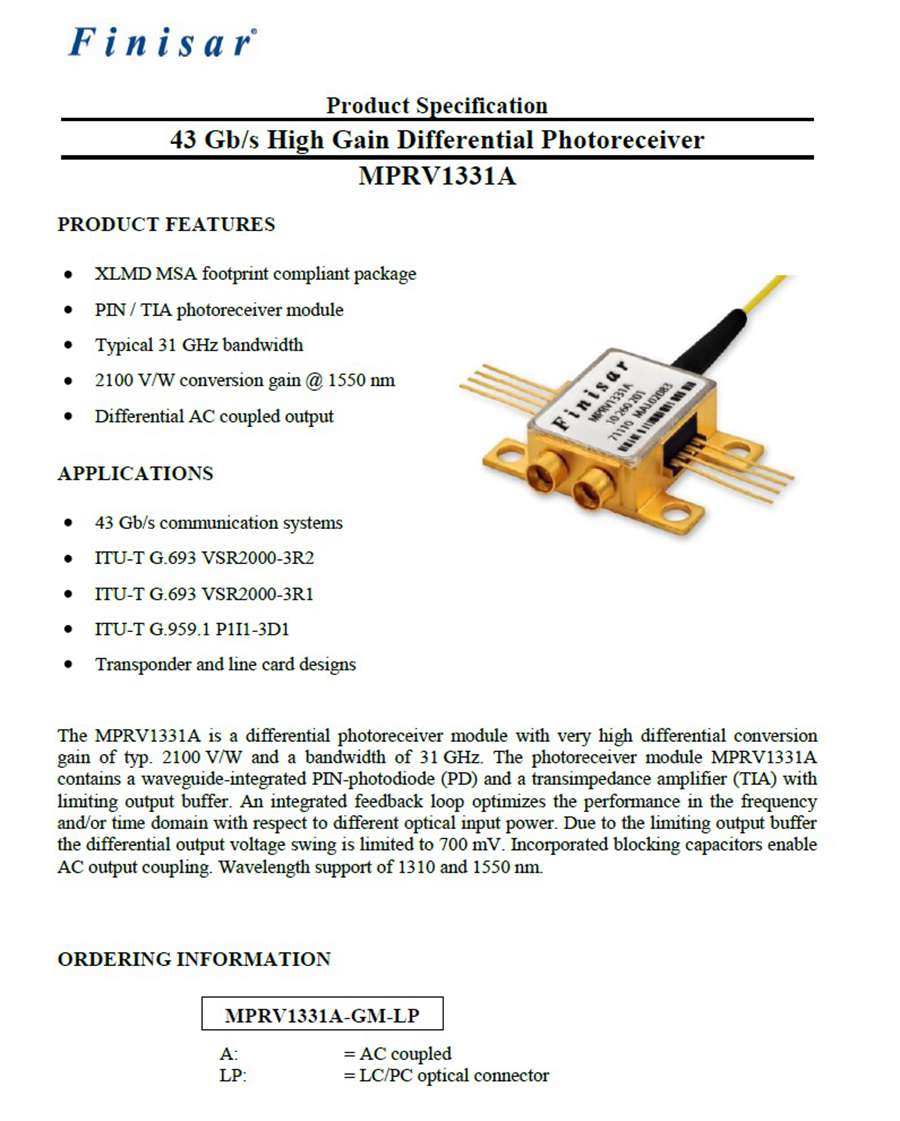

The MPRV1331A is a differential photoreceiver module with very high differential

conversion gain of typ. 2100 V/W and a bandwidth of 31 GHz. The photoreceiver

module MPRV1331A contains a waveguide-integrated PIN-photodiode (PD) and

a transimpedance amplifier (TIA) with limiting output buffer. An integrated feedback

loop optimizes the performance in the frequency and/or time domain with respect to

different optical input power. Due to the limiting output buffer the differential output

voltage swing is limited to 700 mV. Incorporated blocking capacitors enable AC output

coupling. Wavelength support of 1310 and 1550 nm.

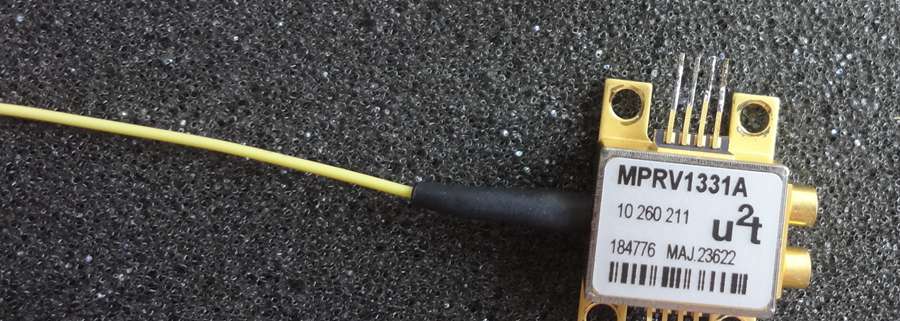

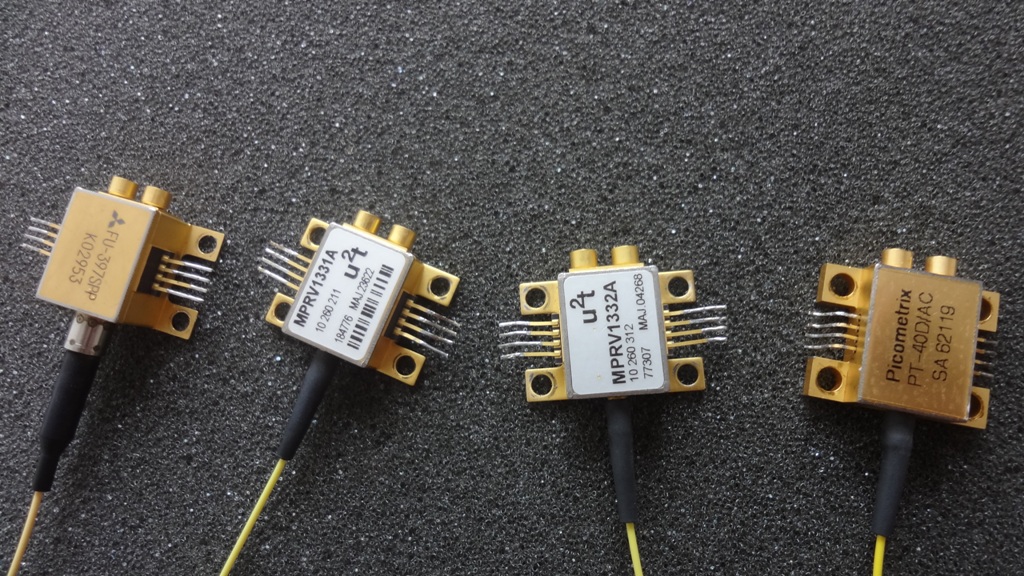

MPRV1331A

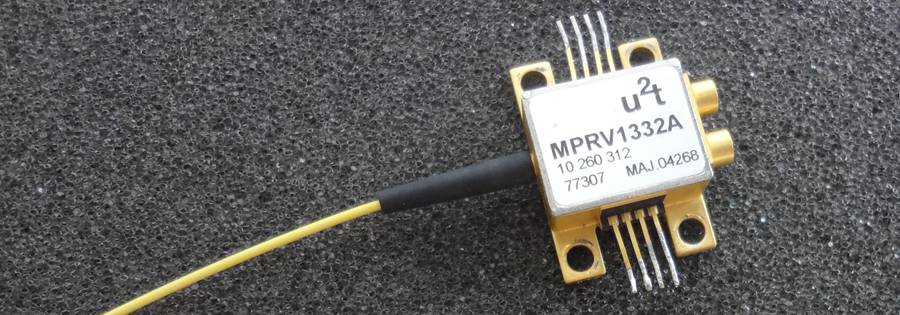

MPRV1332A

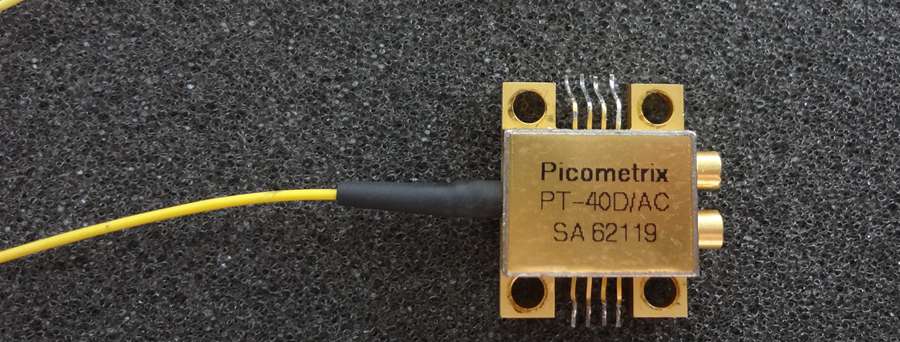

PT-40D/AC

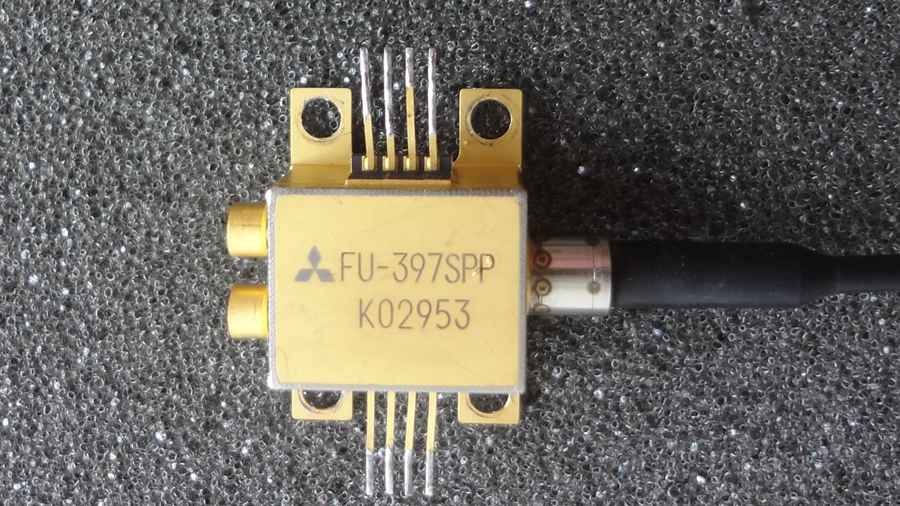

FU-397SPP
