32 Gbps Inphi BPSK QPSK 16QAM Quad MZ Modulator Driver GPPO IN3214HG
IN3214HG
32 Gbps Quad Mach-Zehnder Modulator Driver
Applications
100G coherent systems
BPSK and QPSK Mach-Zehnder modulator driver
Features
Data rate up to 32.5 Gbps
Quad drivers with integrated bias-T coils, and input DC blocks in a single package
Surface Mount Technology (SMT) differential inputs
GPPO single-ended outputs
Adjustable gain range
Temperature monitor
Fully hermetic
Description

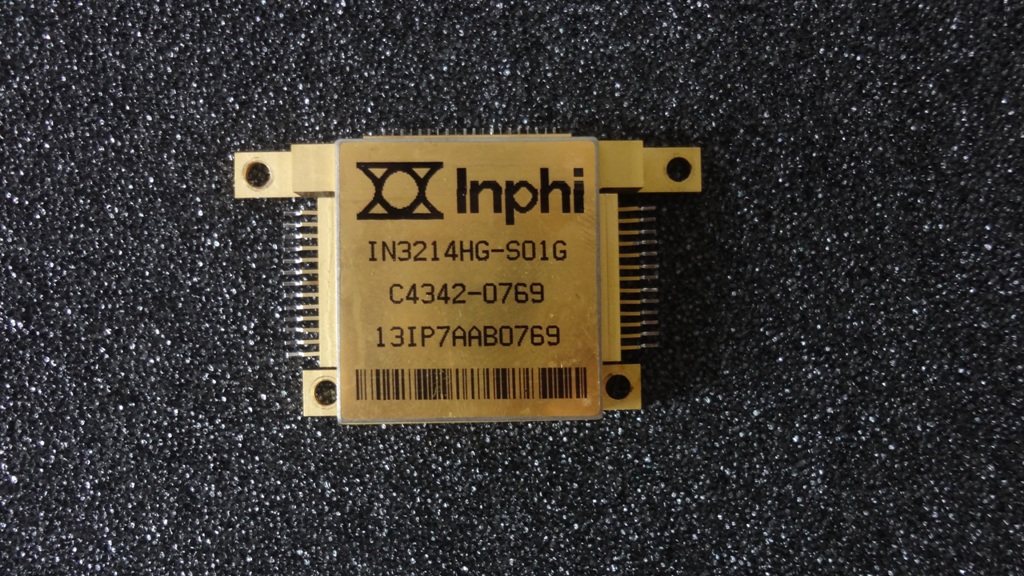

The IN3214HG is a 32.5 Gbps quad Mach Zehnder (MZ) modulator driver for next-generation 100G coherent systems.
The IN3214HG provides SMT differential inputs and GPPO outputs. The IN3214HG accepts differential inputs with single-ended outputs.
The IN3214HG includes a temperature monitor. It is designed to allow the user to turn off one or more channels to support various modulation formats.
The IN3214HG is available in a RoHS6-compliant multi-chip module with SMT inputs and GPPO output connectors.
