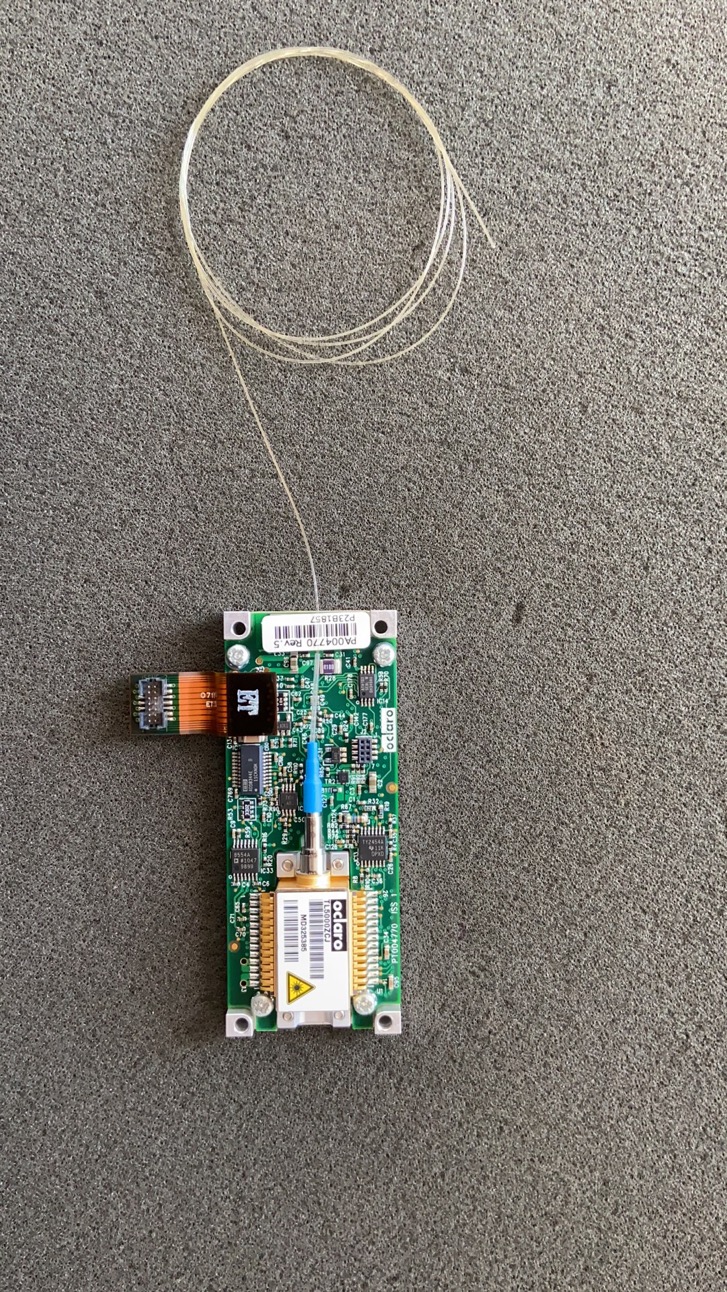

Oclaro CW C Band Integrable Tunable Laser ITLA 96CH 大功率7-13dBm 支持连续扫描 TL5000ZCJ

Features

• Full C-Band tunable source (1529-1567nm) based on OIF iTLA footprint
• High power +13dBm EOL
• High speed electronic tuning control (<10ms channel to channel)
• Electronic shutter for dark tuning
• Low power dissipation, 3.8W typical
• Narrow line-width, 5MHz maximum
• Excellent SMSR >40dB
• Low RIN
• Wavelength stabilized for 50GHz or 100GHz ITU-T channel spacing
• Optical power monitor
• FM Dither / Trace tone capability
• Case operating temperature range -5ºC to +75ºC
• Simple RS232 interface
• RoHS compliant
• Telcordia Qualified to GR 468

Applications
• Long Haul/Ultra Long Haul
• Regional Metro
• Test and Measurement
