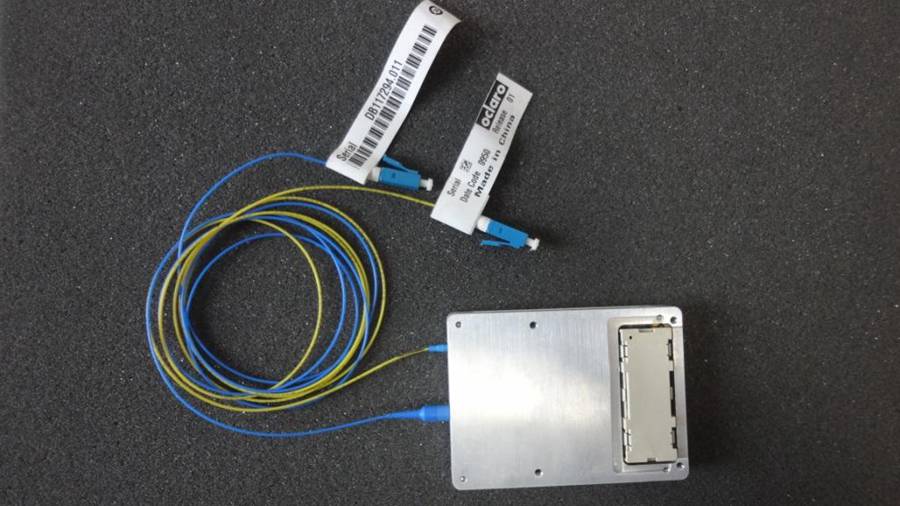

Oclaro 10Gb/s 300-pin MSA Transponder Wideband Tunable SFF Zero Chirp, Long Reach Tx, PIN Rx

The Oclaro TL9000 module is a 300-pin MSA compatible, 10Gbps,

long reach, wideband tunable transponder module suitable for 50GHz

channel spaced C-band applications requiring a zero chirp transmitter.

The module supports data rates from 9.9Gbps to 11.3Gbps and is

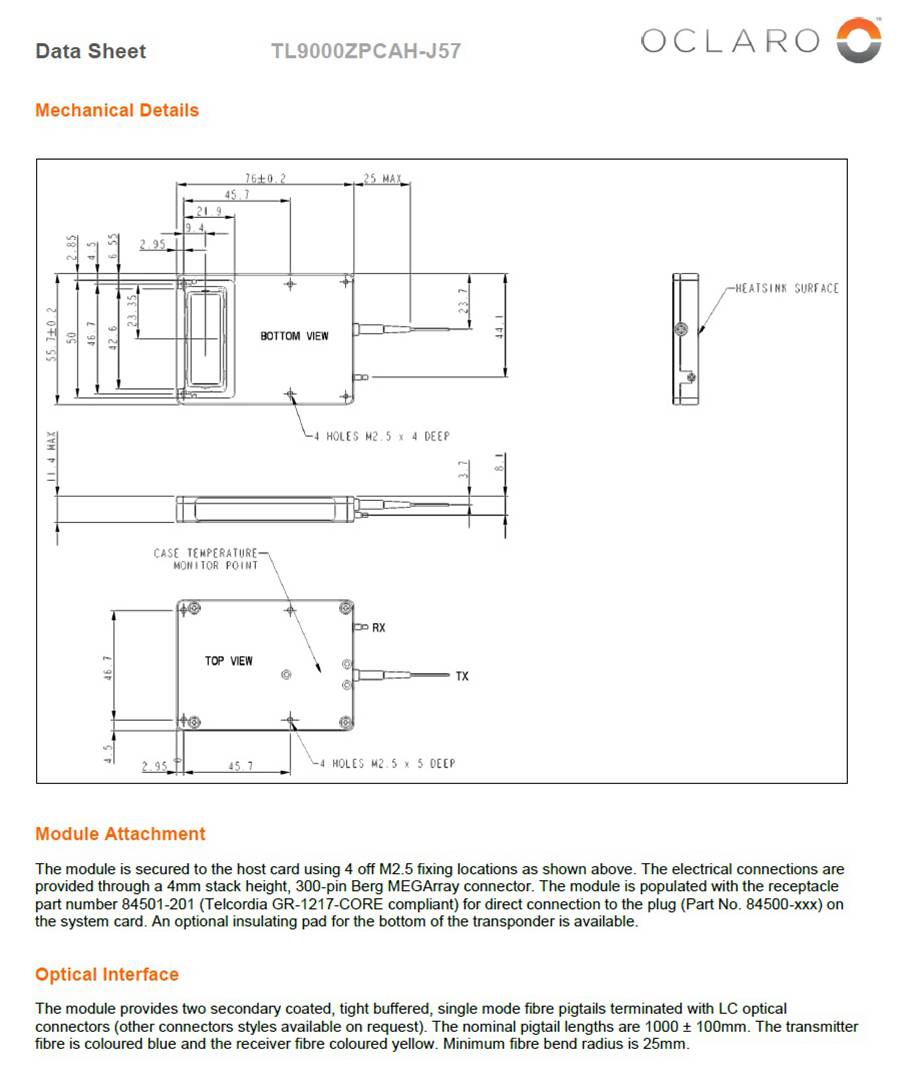

provided in a low profile (11.4mm high) Small Form Factor (SFF) industry

standard mechanical outline.

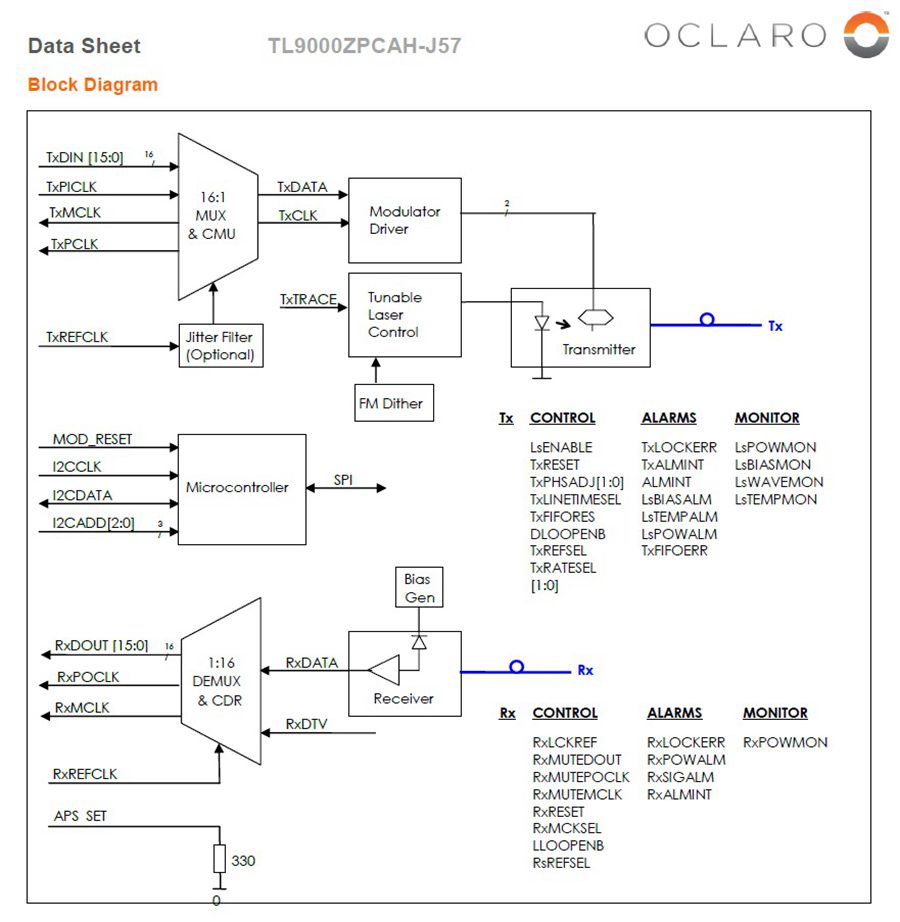

The module supports bi-directional conversion of high speed optical signals

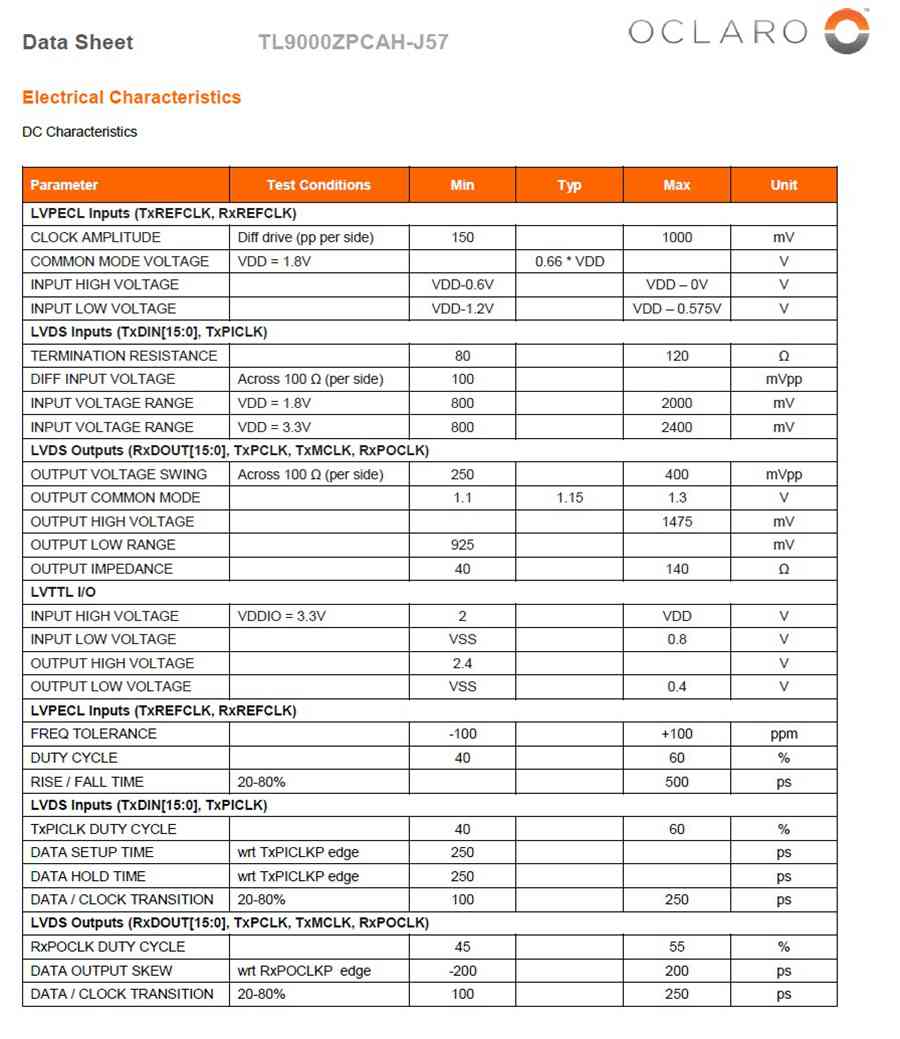

to / from low speed electrical signals. The electrical interface provides a

16-bit parallel LVDS interface as defined in OIF-SFI4-01.0.
