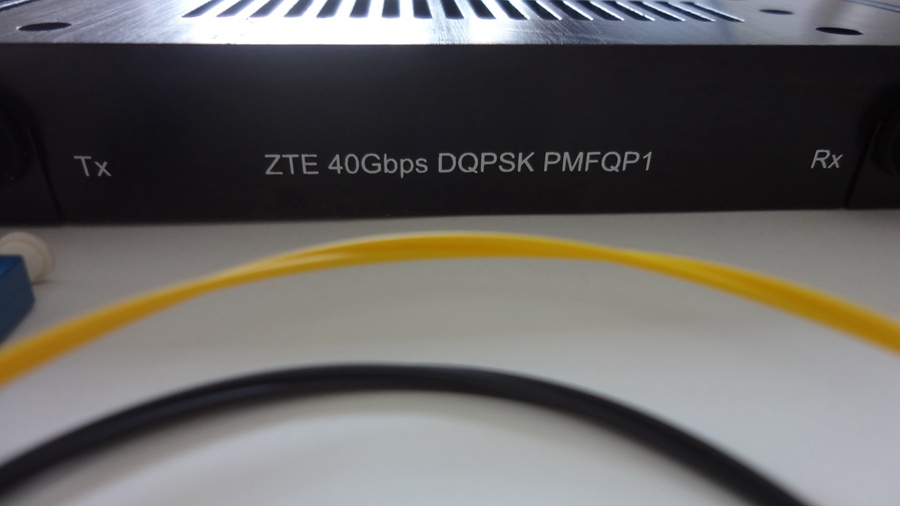

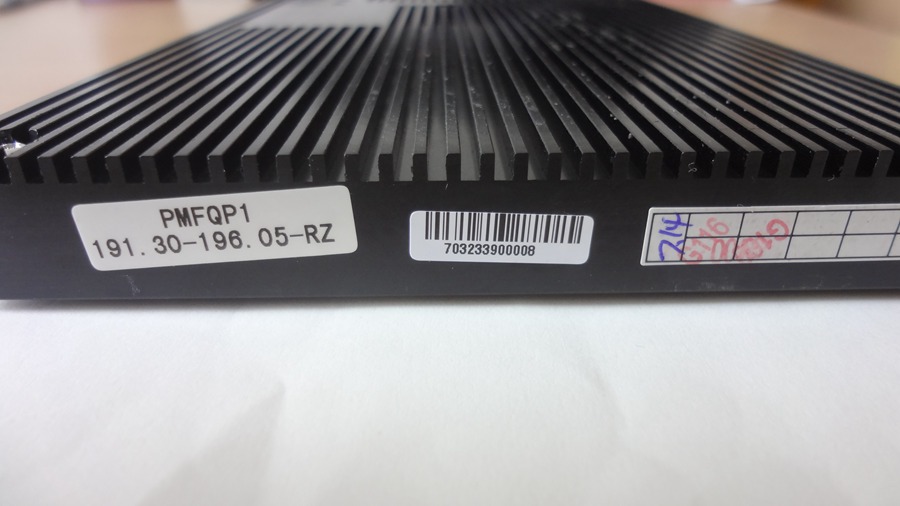

ZTE 40Gb/s DQPSK 300-Pin MSA Transponder Wideband Tunable SFF Zero Chirp Tx Rx

40 Gbps DP-QPSK Coherent Transponder

8500 Series

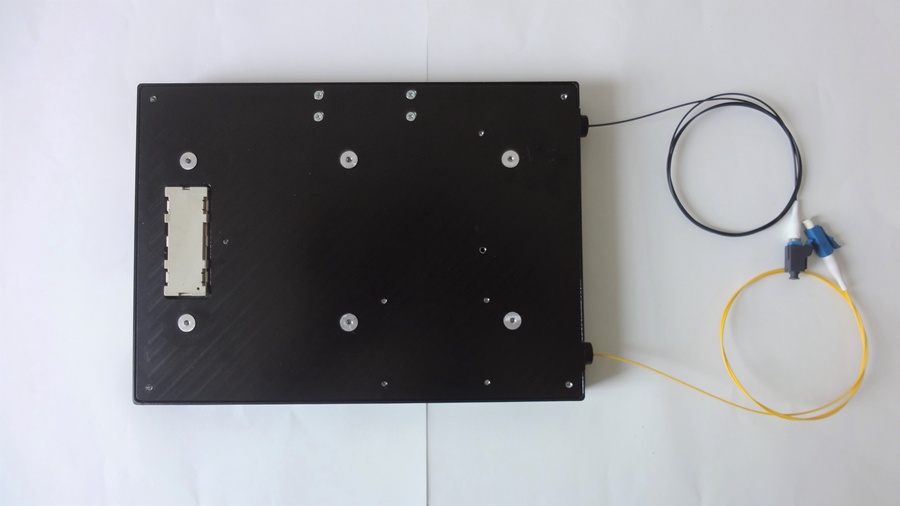

The 8500-Series 40 Gbps Long Reach (LR) Transponder is a 300-pin MSA

module representing the next generation of 40 Gbps transponder products.

The 8500 transponder uses the very latest digital signal processing (DSP) chip

technology to mitigate transmission impairments, such as chromatic dispersion

and polarization mode dispersion, along with Lumentum optical transmitter and

coherent receiver technology for a compact solution that supports the latest

features and protocols.

The 8500 transponder incorporates advanced DSP technology that supports 43.0

and 44.6 Gbps dual bit rates, allowing it to operate in a wide variety of networking

application protocols, including OTU-3, OTU3e1, and OTU3e2.

The module uses the Non-Return to Zero (NRZ) DP-(D)QPSK modulation format

with coherent detection complies with the industry-standard 300-pin MSA. It

supports operation over links with up to 55,000 ps/nm of dispersion and 100 ps DGD.

The 8500 transponder supports 40 Gbps line-side applications for DWDM

transmission systems, cross-connects, optical routers/switches, and SONET/SDH

transmission systems.

Features

300-pin MSA compliant

5" x 7" form factor

OTU3, OTU3e1/e2

50 GHz ITU-T grid channel spacing

Fast I2 C compatible

55 ns/nm CD tolerance

100 ps DGD tolerance

ITU-T G.709 and legacy mode data mapping

Applications

Long-haul optical transmission

OTU3, OTU3e1, and OTU3e2

Compliance

ITU-T G.709

Telcordia® GR-253 issue 3

IEC 60950-1:2005 +A1

EN 60950-1:2006 +A1+A11 +A12

UL/CSA 60950-1:2011

IEC 60825-1:2007

EN 60825-1:2007

IEC/EN 60825-2:2004 +A1+A2

RoHS 6/6
