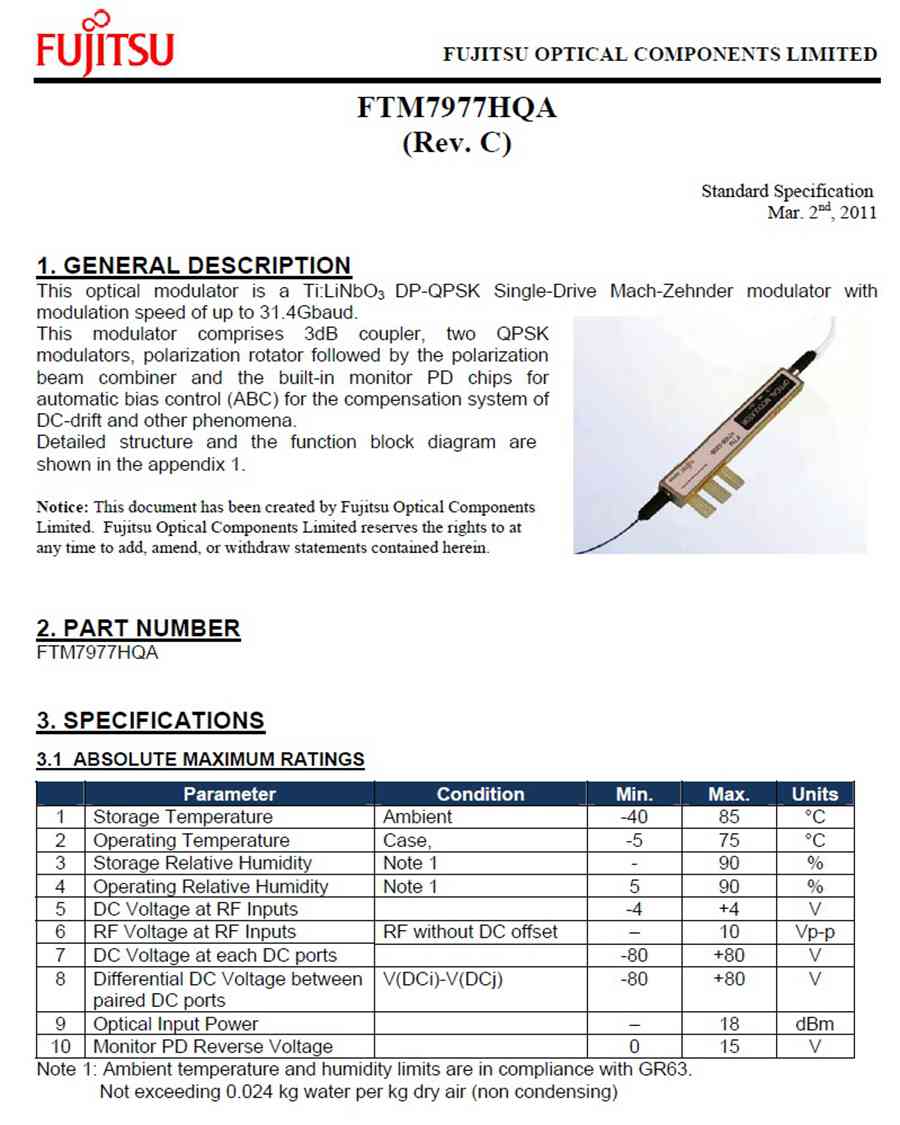

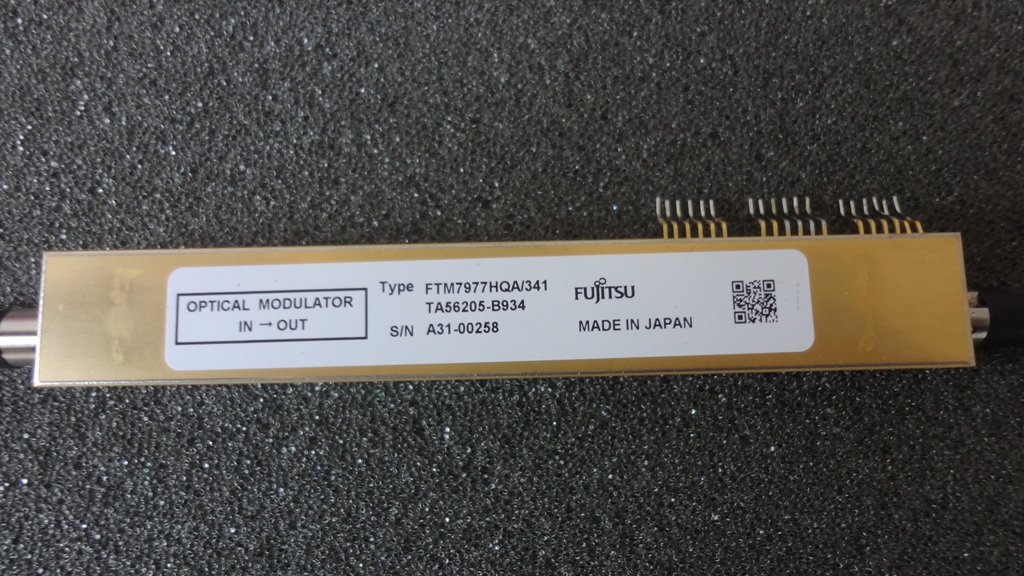

Fujitsu DP-QPSK 100Gbps Single-Drive MZ Optical Modulator LN FTM7977HQA

General Description

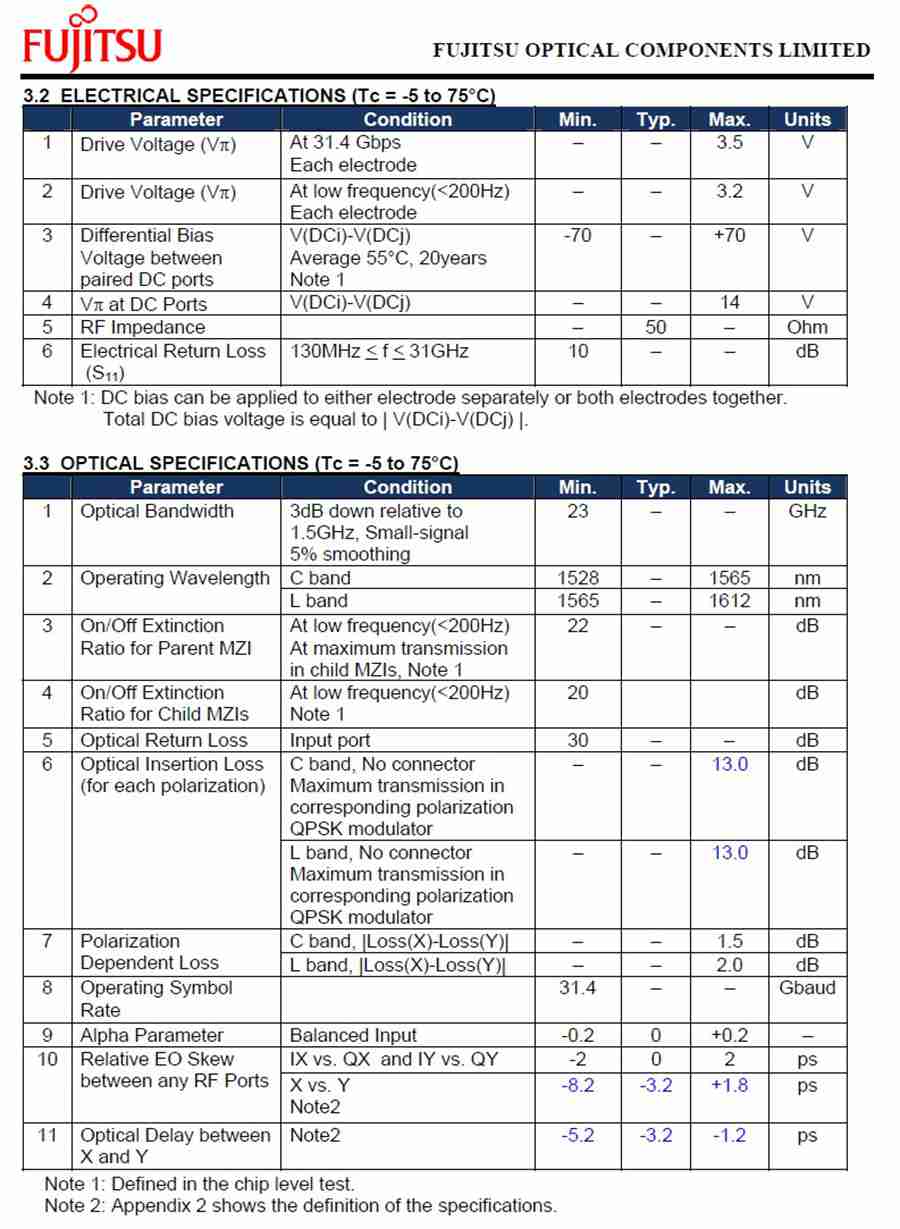

This optical modulator is a Ti:LiNbO3 DP-QPSK Single-Drive Mach-Zehnder modulator

with modulation speed of up to 31.4Gbaud.

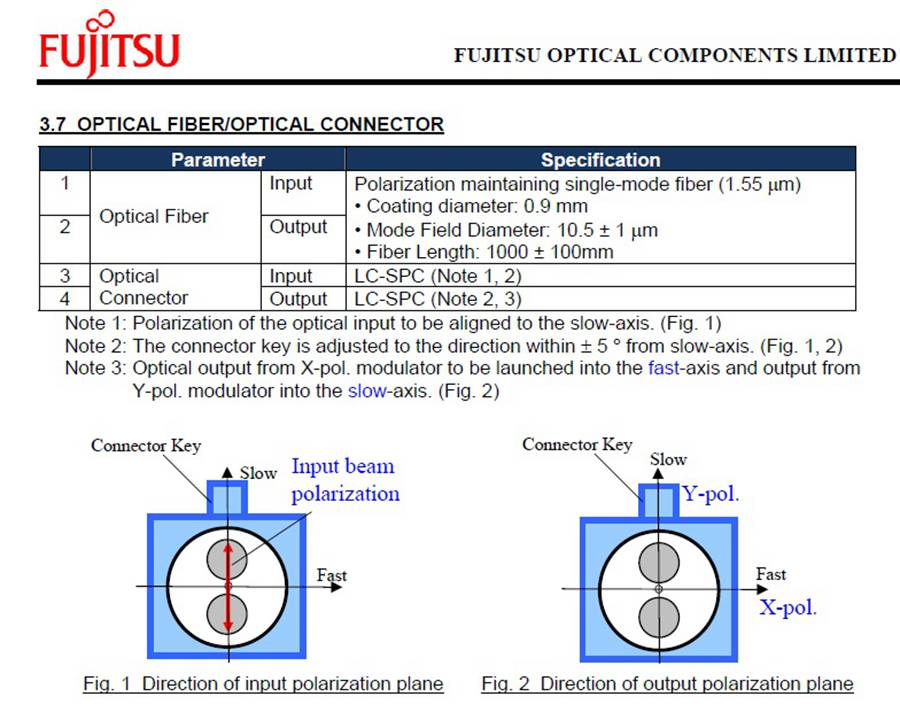

This modulator comprises 3dB coupler, two QPSK modulators, polarization rotator followed

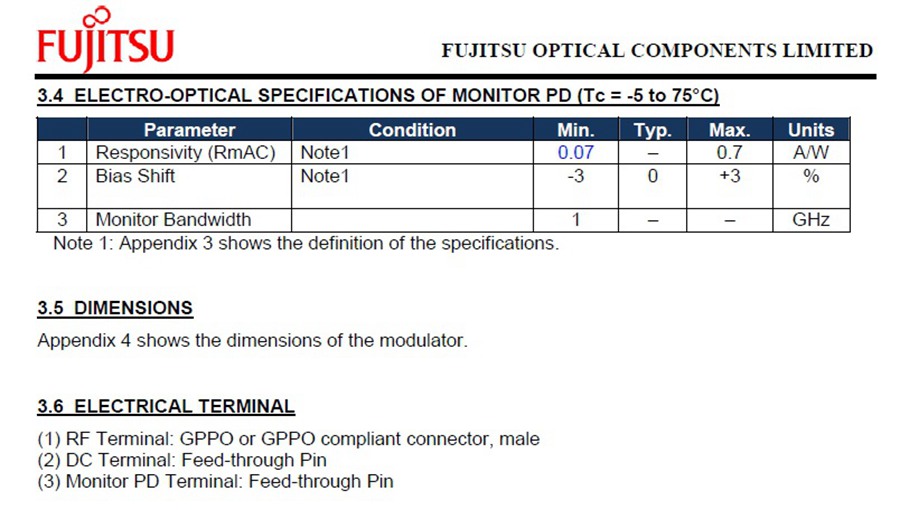

by the polarization beam combiner and the built-in monitor PD chips for automatic bias

control (ABC) for the compensation system of DC-drift and other phenomena.

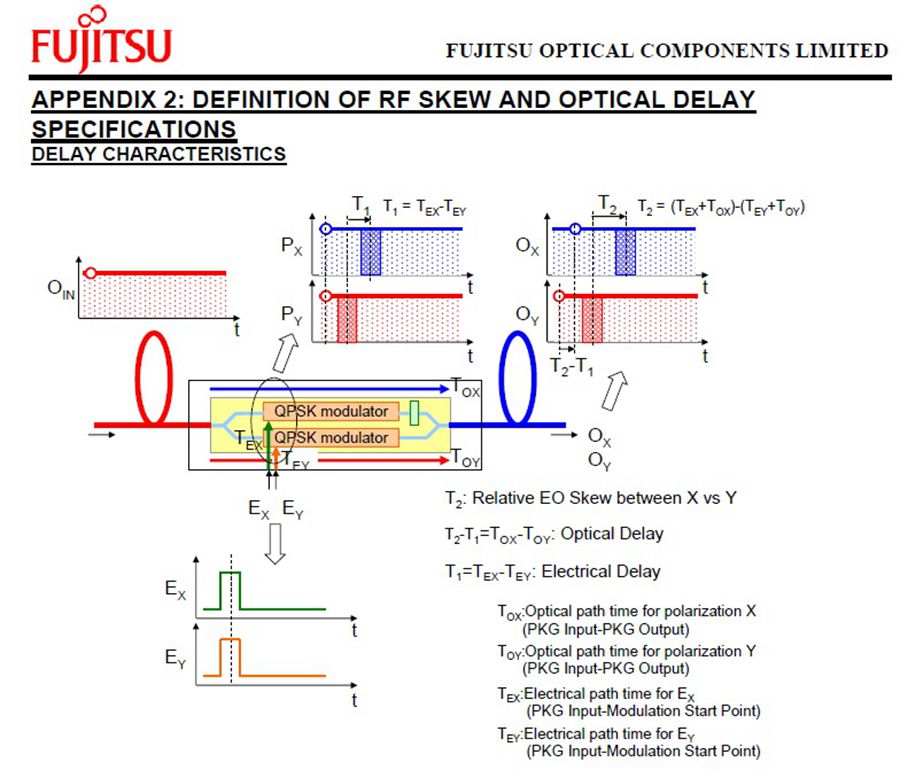

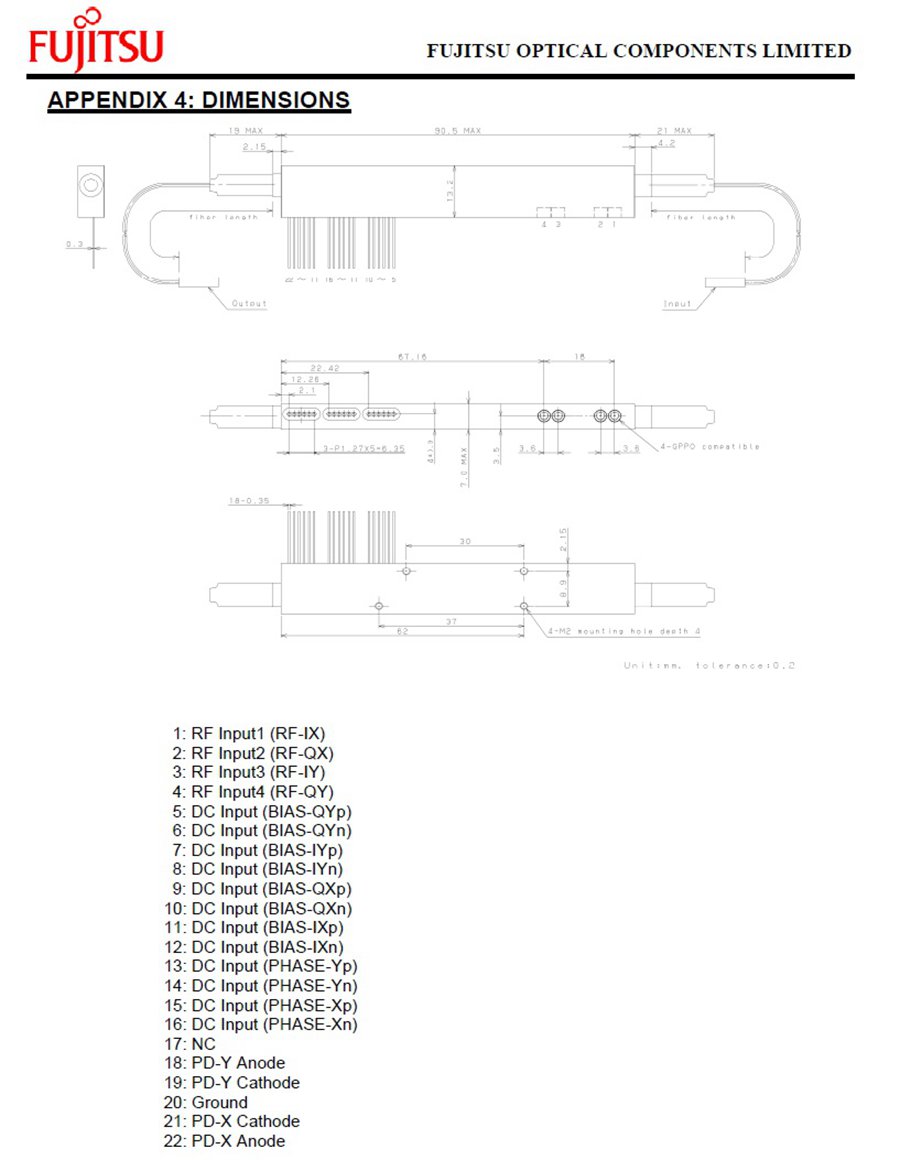

Detailed structure and the function block diagram are shown in the appendix 1.

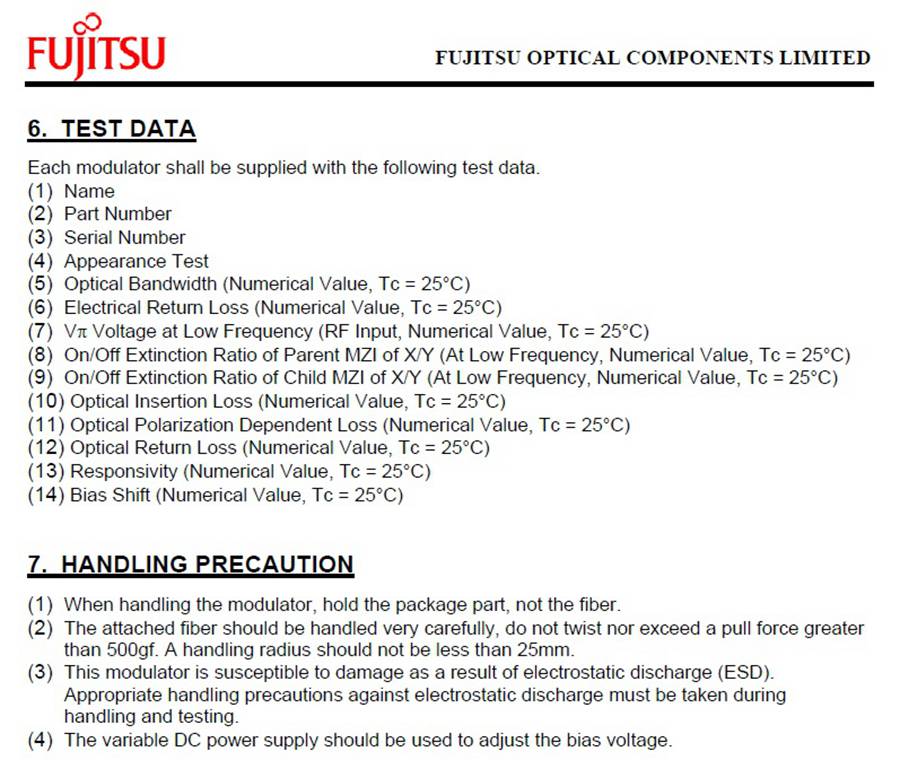

Notice: This document has been created by Fujitsu Optical Components Limited.

Fujitsu Optical Components Limited reserves the rights to at any time to add, amend, or withdraw

statements contained herein.
