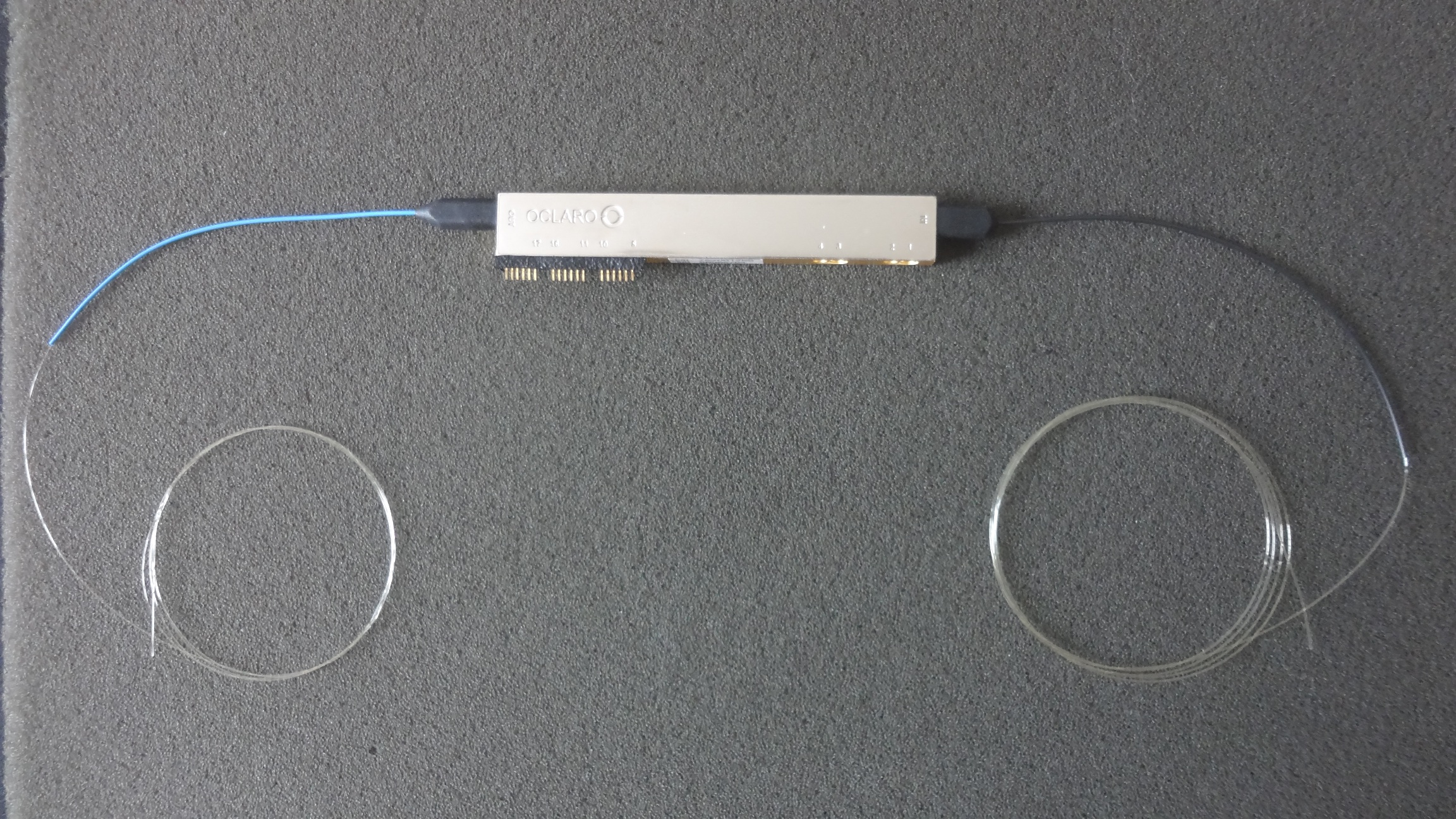

Oclaro 100G PM-QPSK Modulator DWDM DP-QPSK Single Ended FC/APC 792001280

https://www.lumentum.com/en/products/modulator-100g-200g-dp-qpmz

Descriptions

The Lumentum 100G PM-QPSK modulator is designed according to the widely accepted

OIF 100GE Tx implementation agreement. It supports the dual polarization-QPSK modulation

scheme, with each of four parallel MZI’s running at speeds of up to 32 Gbaud.

The chip design features low insertion loss (with very small polarization dependent loss)

as well as a high bandwidth with quasi-linear electro-optic roll-off.

Features

100G Metro to ULH transmission with highest spectral efficiency
DWDM over 10G Infrastructure (with coherent detection)
100G Transponders and Linecards
Other modulation formats

Applications

100 Gbps generated from four 25 Gbaud signals (polarization multiplexed 2*50G QPSK, plus FEC)
Single ended
Low insertion loss
Fully integrated with polarization combiner
Designed to OIF implementation agreement
Leading transmission performance
Low drive voltage
Low skew

Compliance
Qualified to GR-468
