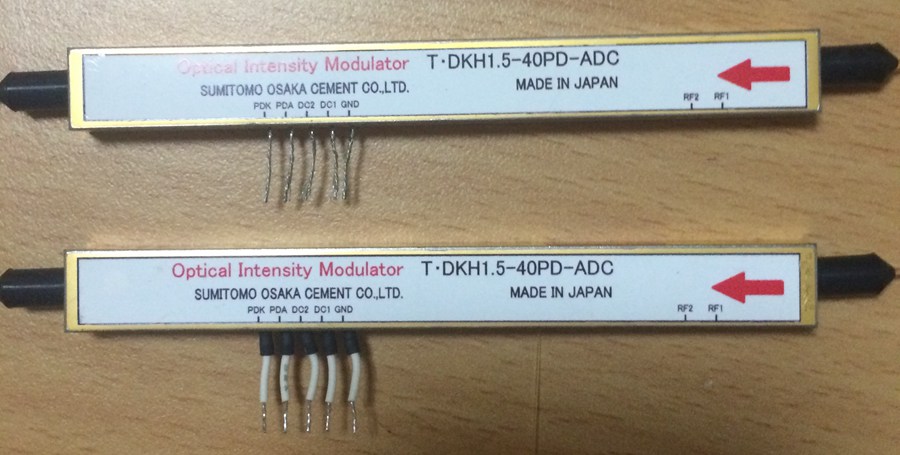

Sumitomo 40G QPSK Low Drive Volt MZ Intensity Modulator DPSK T.DKH1.5-40PD-ADC

40Gbps Intensity Modulator with the Features of

Low Drive Voltage, RF Voltage 4V@20GHz, Typ. at Single Drive Mode.

C and L-Band Operation.

Enhanced E/O Bandwidth for up to 40 Gb/s Modulation Speed

Low Insertion Loss, 9.0dB Typ.

Integrated Monitor Photodiode.

Supports Both Dual-drive and Single-drive.
