光开关 Sercalo MEMS 1240-1640nm 1x4 Switch 1dB Insertion Loss Pin Supply 5V SW-1x4

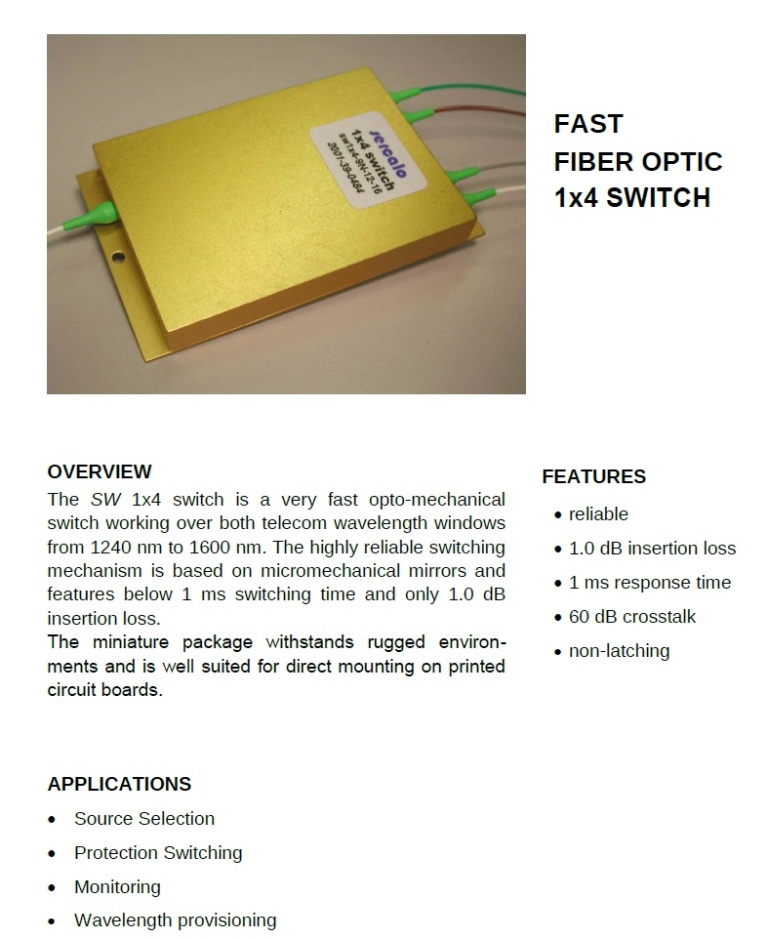

Overview

The SW 1x4 switch is a very fast opto-mechanical switch working over

both telecom wavelength windows from 1240 nm to 1600 nm.

The highly reliable switching mechanism is based on micromechanical

mirrors and features below 1 ms switching time and only 1.0 dB insertion loss.

The miniature package withstands rugged environments and is well suited for

direct mounting on printed circuit boards.

Features

reliable

1.0 dB insertion loss

1 ms response time

60 dB crosstalk

non-latching

Applications

Source Selection

Protection Switching

Monitoring

Wavelength provisioning
